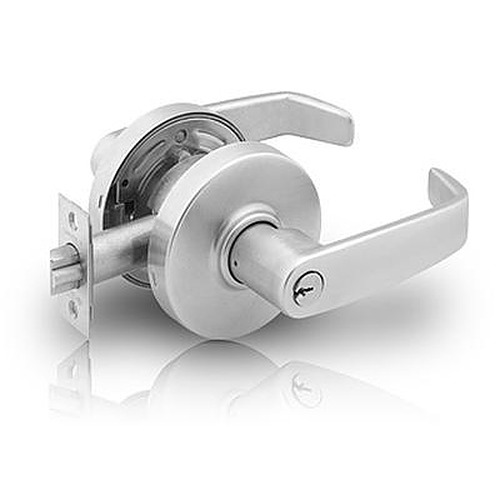

Sargent 28-7G04L-US10 LA KWY

Special Order Standard Duty Storeroom Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Storeroom or Closet Function
  • Satin Bronze Finish-US10
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 28-7G04L-US10 LA KWY

Choose Options Below

This Sargent 7G04 storeroom function lever lock is a high quality lock that exceeds ANSI/BHMA A156.2 series 4000 Grade 2 standards. This lock can be easily installed within one minute using the supplied easy to follow instruction and the installation diagram that is conveniently displayed on the box.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

B B
L L
P P

Choose Finish:

US10-Satin Bronze US10-Satin Bronze

Overview

Special Order no stock item with 4 week lead time
Suited for:
  • Standard duty commercial exterior and interior doors

Quality and Safety:
  • Exceeds ANSI/BHMA A156.2 series 4000 Grade 2 durability standards
  • UL listed for USA and Canadian safety regulations; listed for use on 3-hour doors
  • 5 year limited warranty
  • Meets ADA requirements for barrier free accessibility
  • Deadlocking latch bolt to prevent lock picking by credit card
  • Internal through-bolts provide strength and stability without requiring additional door preparation

Door Preparation: (161 standard)


Available Options: Choose Options Above

Product at A Glance

Style Key-in-lever Storeroom Function
Grade Standard Duty
Function Storeroom or Closet Function:
- Always locked on the outside knob
- Requires a key for entry
- Inside knob is always free
- ANSI F86
Handing Non-handed
Strike 4-7/8" curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (brass)
Throw 1/2"
Door Thickness 1-3/4" (standard)
Backset 2-3/4" (standard)
Stile 4-1/2" (minimum)
Design - Rose - L style
- Lever - select above

More Info


The Sargent 7 line lock is an excellent combination of quality, reliability, convenience and tasteful design. This lock far surpasses ANSI/BHMA A156.2 4000 series, Grade 2 standards for strength and durability. It installs conveniently in less than a minute.  To enhance the aesthetics of your application, we offer a variety of finishes and lever designs.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
