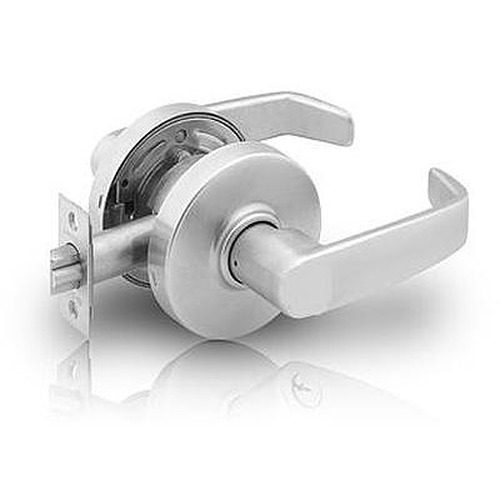

Sargent 7U15

Standard Duty Passage Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Passage Function
SKU: 7U15

Price: $110.00 /each

Choose Options Below

This Sargent 7U15 is a commercial standard duty lock which allows passage via both levers at all times. Conveniently supplied as a non-handed product that can be used on right or left handed doors. Fits doors with standard thickness of 1-3/4" and standard backset of 2-3/4". The door stile must be at least 4-1/2" wide.

  • In Stock!
  • Order in the next 22 hours 50 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $110.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Lever:

Overview


Suited for:
  • Standard duty commercial exterior and interior doors

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 2 durability standards
  • UL listed for USA and Canadian safety regulations; listed for use on 3-hour doors
  • 5 year limited warranty
  • Meets ADA requirements for barrier free accessibility

Door Preparation: (161 standard) 1” edge bore hole
  • Mortise - width 1-1/8”, height 2-1/4”

Conveniences:
  • Can be easily installed in one minute or less
  • Includes easy to follow instructions
  • Convenient installation diagram on box

Special Orders Available:
  • More unlisted finishes available
  • Available with a backset of 2-3/8”
  • Available for a door thickness of 1-3/8”
Contact us directly to place your special order.

Available Options: Choose Options Above

Product at A Glance

Style Lever set
Grade Standard duty
Function Passage Function:
- Outside and inside leverss are always free
- ANSI F75
Handing Non-handed
Strike 4-7/8" curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (brass)
Throw 1/2"
Door Thickness 1-3/4" standard
Backset 2-3/4" (standard)
Stile 4-1/2" minimum
Design - Rose - L style
- Lever - select above

Sargent passage function locks can be used in practically any commercial application where no locking is necessary. They are often used in offices on doors where free entry and exit is permitted at all times or on closet doors that do not require locking. You can rely upon Sargent to provide you with unparalleled quality and durability for all your commercial locking needs.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Standard Duty Passage Lever
