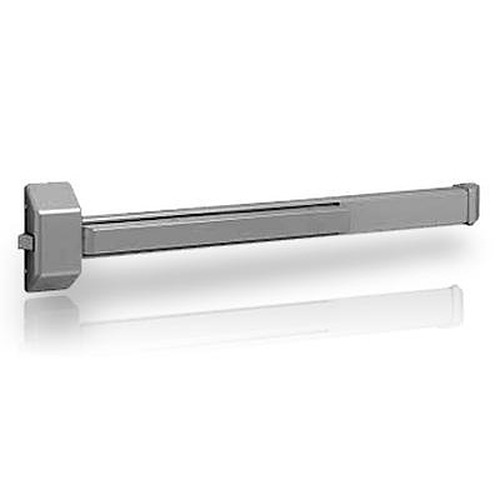

Sargent 3828-E-TB

Special Order Multi-function Rim Exit Device for 32" Wide Door

Quick Product Details

  • Rim Exit Device
  • Surface Mounted
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 3828-E-TB

Choose Options Below

This Sargent 3828-E-TB is a surface mounted, rim exit device for doors that are 1-3/4" thick and their stile is at least 4-1/2" wide. It is available in five different functions which will be determined by the trim that is ordered separately.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish :

Dark Bronze Enamel (EB) Dark Bronze Enamel (EB)
Aluminum Enamel (EN) Aluminum Enamel (EN)

Overview

Special order non stock item with 4 week lead time.
  • Rim exit device for doors 32" to 24" wide. No cutting required for 32" door.
  • Includes wood and machine screws.
  • 4 thru-bolts included.

Available Options: Choose Options Above

Product at A Glance

  • The device can be cut to size within the field
  • Available with 5 different functions which is determined by the trim (ordered separately)
  • Hex key dogging is standard, Cylinder dogging is optional
  • Furnished with a tapered push-rail and angle covers
  • Steel end-caps and covers
Style Rim Exit Device
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Handing Non-handed
Latch Stainless steel
Throw 3/4"
Strike 649 strike - standard, black nylon coated

More Info


Following a number of serious fires in the early 1900’s, in which unfortunately many were crushed to death due to a lack of efficiency in opening the doors, the exit device was developed to prevent further loss of life. The exit device, also known as the panic bar, releases the latch upon being depressed. This mechanism provides for easy emergency exit even during a crush, since anyone leaning against the door will release it.
