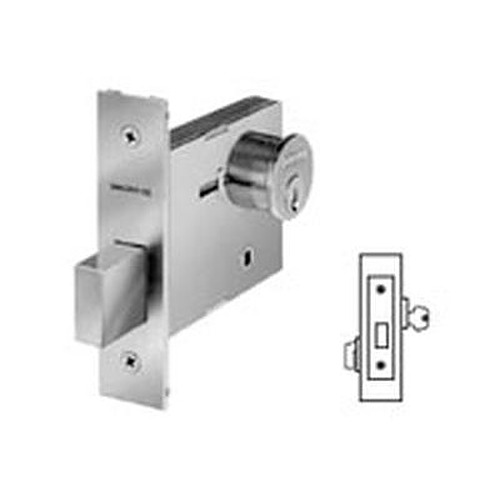

Sargent 4877

Classroom Mortise Deadlock

Quick Product Details

  • Mortise Deadlock
  • Heavy Duty
  • Single Cylinder
  • Deadbolt Classroom Function
Price: $218.00 /each

SKU: 4877

Choose Options Below

This Sargent 4877 classroom mortise deadlock is a high quality, heavy duty deadlock that may be used on fire doors. A key in the outside will operate the deadbolt, and the inside lever will retract the deadbolt but will not project it.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $218.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder:

1-1/8 1-1/8" Mortise Cylinder LA Keyway- Keyed Different
Less Cylinder Subtract -($54.87)
60-Prepped for Sargent Removeable Core, Core not included 60-Prepped for Sargent Removeable Core, Core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60 - Prepped for Sargent full size removable core (core not included)

Easily rekeyed without disassembling entire lock. Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks?

LC (less cylinder)

Cylinder not included

Choose Finish:

Oil Rubbed Bronze (US10B) + $3.00 Oil Rubbed Bronze (US10B) +$3.00
Satin Chrome (US26D) Satin Chrome (US26D)


Quality and Safety:
  • UL and cUL listed for use on fire doors

Available Options: Choose Options Above

  • Cylinder: info icon

    • 1-1/8" Mortise Cylinder LA Keyway- Keyed Different
    • Less Cylinder
    • 60-Prepped for Sargent Removeable Core, Core not included
  • Finish:

Product at A Glance

Style Mortise deadbolt
Grade Heavy Duty
Function Deadbolt Classroom Function:
- Key outside operates deadbolt
- Inside lever retracts deadbolt but will not project it
Handing Non-handed - completely reversible
Strike No; 480 - 3-1/2" by 1-1/8"
Bolt 1 piece, hardened, stainless steel deadbolt
Throw 1"
Door Thickness 1-3/4"
Backset 2-3/4"
Front - Armored 4-5/8"" by 1-1/8" - adjustable for flat or beveled doors
- Bevel adjustment - 1/8"" in 2"

More Info

Single cylinder deadlocks provide for utmost safety and security. Their deadbolt construction will resist intruder attempts at  breaking the lock, even when using a hammer to try to smash the lock. Single cylinder locks also adhere to fire safety codes by permitting quick and easy exit in the case of a fire emergency by simply rotating a lever on  the inside, thereby retracting the latchbolt.
