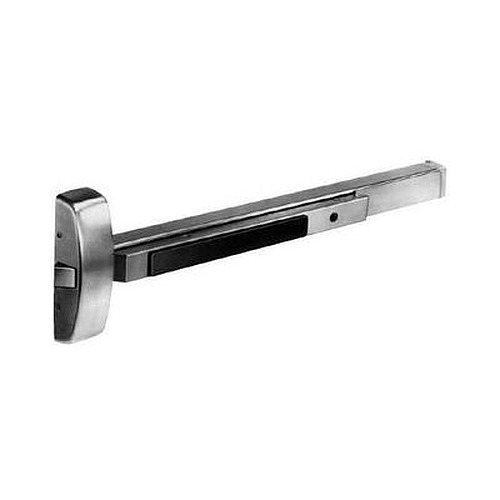

Sargent 8888-TB

Multi-function Rim Exit Device

Quick Product Details

  • Multi-function Rim exit device
Price: $1,605.00 /each

SKU: 8888-TB

Choose Options Below

This Sargent 8888 is a multi-function rim exit device that gets applied to the surface of the door thereby making the installation simple. This device is available with seven different functions, which will be determined by the trim (ordered separately). Designed to fit standard width stile applications on wood or metal doors.

  • Stock Item
  • Order in the next 34 hours 55 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,605.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) + $99.00 Polished Brass (US3) +$99.00
Satin Bronze (US10) + $99.00 Satin Bronze (US10) +$99.00
Oil Rubbed Bronze (US10B) + $99.00 Oil Rubbed Bronze (US10B) +$99.00
Satin Stainless Steel (US32D) Satin Stainless Steel (US32D)

Choose Rail Size:

36" Rail (F) 33" to 36"
48" Rail (G) 43" to 48"

Help Me Decide

  • 36" Rail (F) fits doors 33" to 36" wide
  • 48" Rail (G )fits doors 43" to 48" wide


Quality and Safety:
  • Meets ANSI/BHMA A156.3 2001 Grade 1 standards
  • UL listed for panic
  • 5 year limited warranty

Special Orders Available:
  • More unlisted finishes available
  •  Available as fire rated
Contact us directly to place your special order.

Available Options: Choose Options Above

Product at A Glance

  • Designed for standard width stile applications on metal and wood doors
  • Available with 7 different functions which is determined by the trim (ordered separately)
  • Hex key dogging is standard, Cylinder dogging is optional
  • The device can be cut to size within the field
  • A Sargent 8800/8888 Rim Exit x ET with a 688 Trim Retrofit Kit will easily replace
  • Von Duprin's 98/99 Series Exit with no additional door prep necessary.
  • Includes wood and machine screws
Style Rim Exit Device
Door Thickness 1-3/4"
Handing Non-handed
Latch Stainless steel
Throw 3/4"
Strike 649 strike - standard

More Info

An exit device, also known as a panic bar is a fantastic locking mechanism approved by UL for panic.  As soon as the bar is depressed, whether by pushing it with your hand or by leaning your body against it, the latch will be released and the door will swing open. Hex key dogging is used as a standard means to lock down the device, keeping it unlatched.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


Scroll for More Product Information
