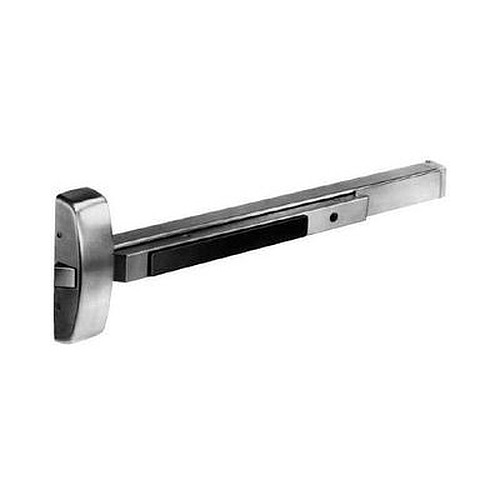

Sargent 8888F-TB-US4

Special Order Multi-function Rim Exit Device with Satin Brass Finish

Quick Product Details

  • Multi-function Rim Exit Device
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 8888F-TB-US4

Choose Options Below

This Sargent 8888 is a multi-function rim exit device that gets applied to the surface of the door thereby making the installation simple. This device is available with seven different functions, which will be determined by the trim (ordered separately). Designed to fit standard width stile applications on wood or metal doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Choose Finish:

Finish Finish

Overview

Special order non stock item with 4 week lead time

  • Meets ANSI/BHMA A156.3 2001 Grade 1 standards
  • UL listed for panic
  • Satin brass finish-US4
  • For 3 foot door opening.



Available Options: Choose Options Above

Product at A Glance

  • Designed for standard width stile applications on metal and wood doors
  • Available with 7 different functions which is determined by the trim (ordered separately)
  • Hex key dogging is standard, Cylinder dogging is optional
  • The device can be cut to size within the field
  • A Sargent 8800/8888 Rim Exit x ET with a 688 Trim Retrofit Kit will easily replace Von Duprin's 98/99 Series Exit with no additional door prep necessary.
  • Includes wood and machine screws and thru bolts
Handing Non-handed
Latch Stainless steel
Throw 3/4"
Strike 649 strike - standard
Style Rim Exit Device
Door Thickness 1-3/4"

More Info


An exit device, also known as a panic bar is a fantastic locking mechanism approved by UL for panic. This device operates with body weight. As soon as the bar is depressed, whether by pushing it with your hand or by leaning your body against it, the latch will be released and the door will swing open. Hex key dogging is used as a standard means to lock down the device, keeping it unlatched.
