Schlage ND10S-BWK

Special Order Heavy Duty Passage Lever

Quick Product Details

  • Lever Set
  • For commercial interior doors
  • Heavy Duty
  • Passage Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ND10S-BWK

Choose Options Below

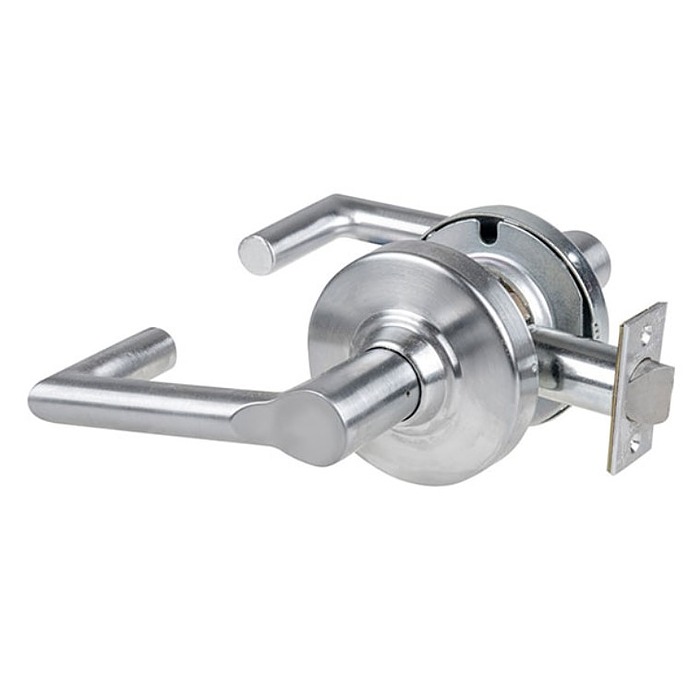

This Schlage ND10S passage function lever is always unlocked on both levers to allow for entry or exit at all times. The ND series lever sets are known for the durability and high quality. They are constructed with very high standards to withstand the use and abuse that heavy duty applications are often subject to .

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose Lever:

Boardwalk (BWK) Boardwalk (BWK)

Help Me Decide

  • ADA compliant levers.

Overview

Non-Stock Special-Order product with 4-6 week lead time

Suited for:
  • Heavy duty commercial interior applications

Quality and Safety:
  • Meets ANSI/BHMA A156.2 series 4000 Grade 1 strength and operational requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty

Available Options: Choose Options Above

Product at A Glance

Style Lever set
Grade Heavy duty
Function Passage Function:
- Outside and inside levers are always free
- ANSI F75
Handing Non-handed - easily reversible
Backset 2-3/4" (standard)
Strike - Curved lip strike
- 1-1/4" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
Throw 1/2"
Door Thickness Adjustable from 1-5/8" to 2-1/8"
