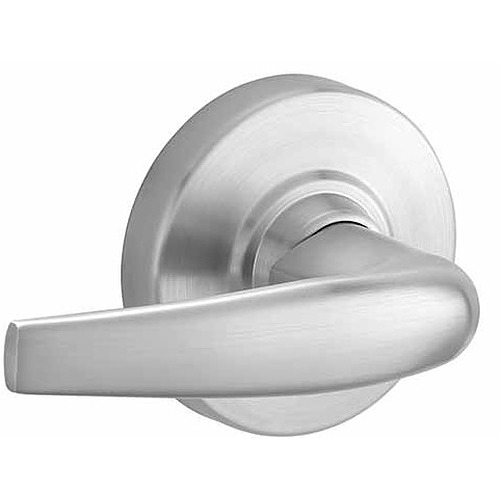

Schlage ND10S-EE3-ATH-626-14-028-10-025

Special Order Heavy Duty Passage Lever for 3" Thick Door

Quick Product Details

  • Lever Set
  • For commercial exterior and interior doors
  • This lock is for a 3" thick door and has a backset of 3-3/4"
  • Passage Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ND10S-EE3-ATH-626-14-028-10-025

This Schlage ND10S passage function lever is always unlocked on both levers to allow for entry or exit at all times. .

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time.
  • with Athens style lever.
  • Satin chrome finish-626
  • Heavy duty commercial exterior and interior applications
  • Meets ANSI/BHMA A156.2 series 4000 Grade 1 strength and operational requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility

Product at A Glance

Style Lever set
Grade Heavy duty
Function Passage Function:
- Outside and inside levers are always free
- ANSI F75
Handing Non-handed - easily reversible
Backset 3-3/4"
Strike - Curved lip strike
- 1-1/4" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
Throw 1/2"
Door Thickness 3"
