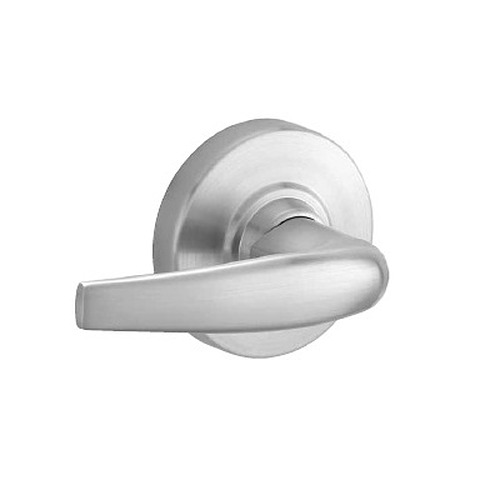

Schlage ND70BD-ATH

Special Order Heavy Duty Small Format Interchangeable Core Classroom Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ND70BD-ATH

Choose Options Below

For heavy-duty commercial applications. Schlage ND70BD prepped for Best type IC core, classroom function commercial lever. Schlage small format interchangeable core (SFIC) locksets allow immediate rekeying at the door simply by using the special control key to replace the core in seconds

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $386.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$33.00
100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $36.00 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$36.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Overview

  • Accepts small format (Best type) IC cores. Core not included
  • Athens style lever.
  • Satin chrome finish.
  • Classroom function-outside lever locked and unlocked by key outside.
  • Inside lever always unlocked
  • Backset-2-3/4" standard. The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Door Range-1-5/8" – 2-1/8".
  • ADA-compliant levers.

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed

More Info

  • UL / cUL- All locks UL Listed for 3-hour fire door.
  • Latch-1-1/8" x 2-1/4", square corner faceplate, 1/2" throw.
  • Non handed, easily reversible.
  • Meets or exceeds A156.2 Series 4000, Grade 1.
  • Strike-ANSI curved lip strike 1-1/4˝ x 4⅞˝.
