Schlage ND80BD-ATH

Special Order Heavy Duty Small format Interchangeable Core Storeroom Lock

Quick Product Details

  • Lever Set with Athens lever
  • For commercial exterior and interior doors
  • Heavy Duty
  • Storeroom function
  • Interchangeable core lock - for Best type SFIC
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ND80BD-ATH

Choose Options Below

This Schlage ND80BD is a commercial lock prepped for Best type small format IC cores. This lever lock meets ANSI/BHMA A156.2 series 4000 Grade 1 strength and operational standards and it complies with ADA requirements for barrier-free accessibility. It is also UL listed for 3 hour doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $448.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with Ready to be Keyed. 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$35.00

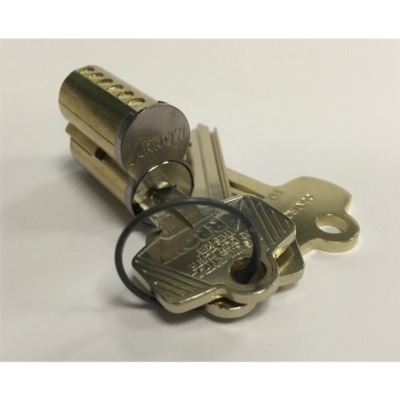

100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $34.00 Keyed IC Core 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$34.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


?

Overview

Non-stock Special Order with 4-5 week Lead Time

Suited for:
  • Heavy duty commercial exterior and interior applications

Quality and Safety:
  • Meets ANSI/BHMA A156.2 series 4000 Grade 1 strength and operational requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed

Product at A Glance

  • Interchangeable core locksets allow for immediate rekeying of the door, by using the special control key to replace the core in seconds.
  • Prepped for Best type IC cores
  • Core is not included
Style Lever lock
Grade Heavy duty
Function Storeroom or Closet Function:
- Outside lever is always locked
- Requires a key for entry
- Inside lever is always free
- ANSI F86
Handing Non-handed - easily reversible
Backset 2-3/4" (standard)
Strike Curved lip strike 1-1/4" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- square corner faceplate
Throw 1/2"
Door Thickness Adjustable from 1-5/8" to 2-1/8"
Lever Provided with Athens (ATH) style lever
