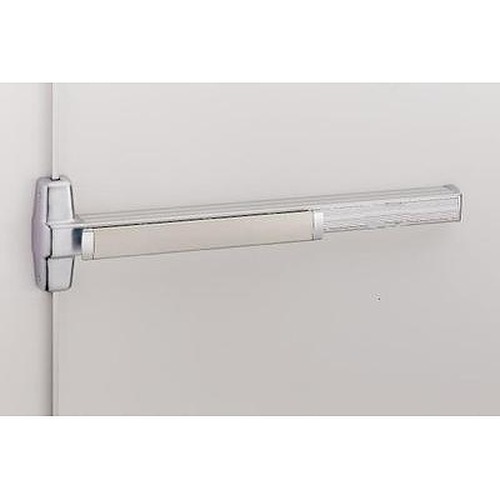

Von Duprin 9927EO-F

Surface Mounted UL Fire Rated Vertical Rod Device

Quick Product Details

  • Vertical Rod Exit Device
  • Exit-Only Function
  • Surface Mounted
  • Fire Rated
  • Heavy Duty
SKU: 9927EO-F

Price: $1,148.00 /each

Choose Options Below

This Von Duprin 9927EO-F is your perfect vertical rod exit device for virtually any applications with high traffic. This product functions as an exit only device and it does not include a trim. It is available in various tasteful finishes and in different rail sizes to meet the needs of your door.

  • In Stock!
  • Order in the next 2 hours to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,148.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Need Help Deciding?

Help Me Decide

  • US26D finish available in 3' and 4' rail lenght. All other finishes available in 3' rail lenght.

Choose Rail Size:

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Covers stock hollow metal doors with 86 or 161 cutouts
  • Rim cylinder is not included
Style Fire-rated Vertical Rod exit device
Grade Heavy duty
Mounting Surface mounted
Trim Exit Only Function - no trim included
Handing Non-handed except when used with SD - Special Dogging or SS - Single Switch options
Door Thickness 1-3/4" and 2-1/4" with standard centerlines
Door Height 7' (standard)
Strike - Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Top Rod Length 34-15/16"
Bottom Rod Length 31-1/4"
Door Undercut 1/4"
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device 39-5/8"
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Top and Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Surface Mounted UL Fire Rated Vertical Rod Device

Surface Vertical Rod Exit Device Adjustment thumbnail

Surface Vertical Rod Exit Device Adjustment
