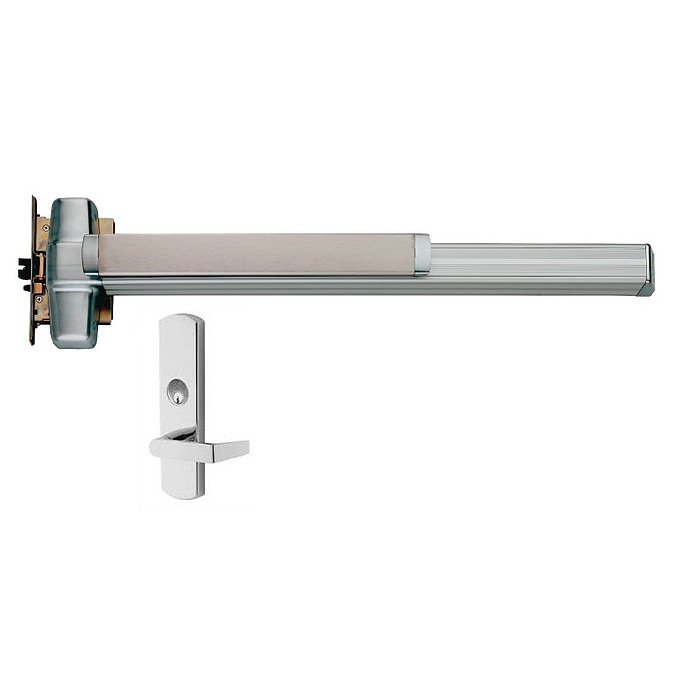

Von Duprin EL-9975L-US28

Special Order Mortise Lock Exit Device with Locking lever and Latch Retraction.

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: EL-9975L-US28

Choose Options Below

Von Duprin EL9975L. Mortise lock exit device with electric latch retraction and locking exterior lever 996L-M. For all types of single or double doors. Device with lever trim function-key locks and unlocks lever. Fits door stiles as narrow as 4-3/4".

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$13.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Overview

Special order item with 4 week lead time.

  • With EL-electric latch retraction.
  • The EL electric latch retraction requires the PS914-2RS power supply, not included.
  • Includes locking lever,996L-M.
  • Mortise cylinder required for lever, not included.
  • For all types of single or double doors.
  • Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4"
  • The 7500 Mortise lock is equipped with a 3/4" anti-friction latch bolt which is field reversible without removing the lock from the door.  It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
  • Strike- #575 – Dull black finish

Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT

More Info

  • Device Lengths 3’, 2’4" to 3’ Door Size, 4’, 2’10" to 4’ Door Size
  • Non-handed except when the following device options are used:
    -2 (DoubleCylinder) or SS (Signal Switch)
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • UL listed for Panic Exit Hardware.
  • Device Centerline from Finished Floor -39-5/8"
  • Center Case Dimensions -8" x 2-3/4" x 2-3/8"
  • Mechanism Case Dimensions 2-1/4" x 2-1/4 "
  • Projection Pushbar Neutral – 3-13/16" Pushbar Depressed – 3-1/16"
