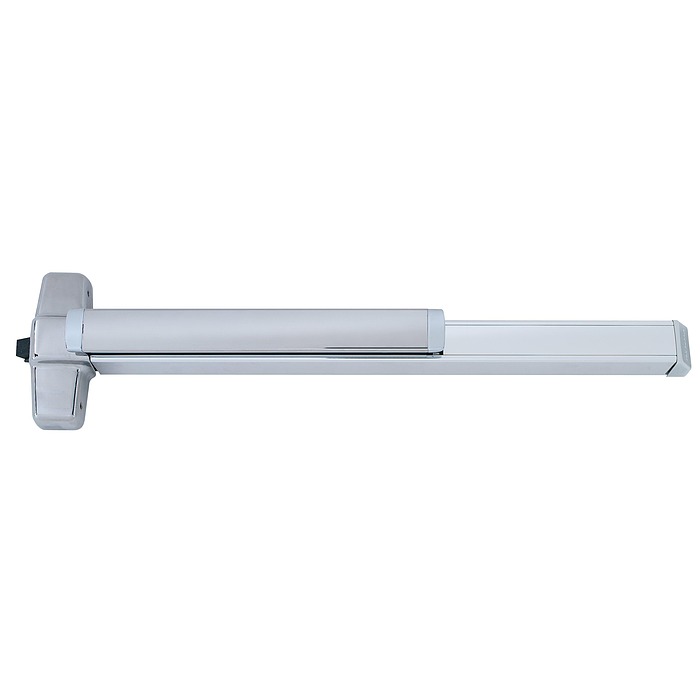

Von Duprin QEL99EO

Rim Exit Device with Motorized Electric Latch Retraction

Quick Product Details

  • Motorized Electrified Rim Exit Device
  • Exit-Only Function
  • Heavy Duty

or for better pricing

Price: $2,438.00 /each

SKU: QEL99EO

Choose Options Below

This Von Duprin QEL99EO is a rim exit device with motorized electric latch retraction which enables remote unlatching of exit devices. This feature is an alternative to manual dogging and it is controlled by a station operator who can flip a switch to retract the latchbolt and immediately change an exit door to push pull operation.

  • Stock Item
  • FREE Same-Day Shipping*When ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $2,438.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$20.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum
US26D (626) Satin Chrome + $150.00 US26D (626) Satin Chrome +$150.00
313 Duranodic Dark Bronze + $84.00 313 Duranodic Dark Bronze +$84.00
US3 (605) Polished Brass + $430.00 US3 (605) Polished Brass +$430.00

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty

Special Orders Available:
  • More unlisted finishes available
  • RX, LX or SS switches available
Contact us directly to place your special orders.

Available Options: Choose Options Above

Product at A Glance

  • For all types of single and double doors with mullion
  • QEL option (Quiet Electric Latch Retraction).  The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
  • The QEL option does not include the power transfer from door to frame, the power supply, or the control operator .
  • The QEL feature is an alternative to manual dogging.
  • Quiet operation
  • Device ships Exit Only/Dummy /Night Latch function,field selectable.
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors
Style Rim exit device
Grade Heavy duty
Function Exit only - trim not included
Handing Non-handed except when used with SD (special dogging), -2 (double cylinder) or SS (signal switch) options
Dogging Feature No mechanical dogging
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
