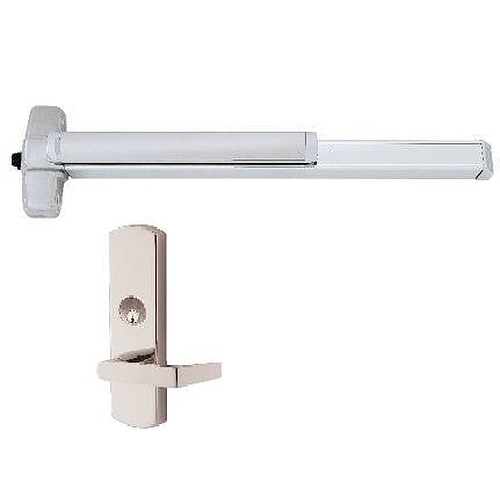

Von Duprin QEL99L

Rim Exit Device with Motorized Electric Latch Retraction and Lever Trim

Quick Product Details

Rim Exit Device
With Lever Trim
Motorized Electric Latch Retraction
Heavy Duty

Price: $2,940.00 /each

SKU: QEL99L

Choose Options Below

This Von Duprin QEL99L is a rim exit device with a lever trim and motorized electric latch retraction. The QEL feature which is an alternative to manual dogging, allows for the remote unlatching of exit devices. A control station operator can easily an exit door to push pull operation by simply flipping a switch that will retract the latchbolt.

Stock Item
Order in the next 15 hours 17 minutes to ship TOMORROW
FREE Same-Day ShippingWhen ordered before 2PM ET
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

or for better pricing

Price: $2,940.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US28 (628) Anodized Aluminum

US26D (626) Satin Chrome +$137.00

US3 (605) Polished Brass +$469.00

313 Duranodic Dark Bronze +$77.00

Choose Rail Size:

3 FT

4 FT +$18.00

Help Me Decide

3’ rail for 28” to 36”’ door width
4’ rail for 34” to 48” door width

Choose Cylinder Rim:

Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$18.00

No Rim Cylinder Needed

Help Me Decide

Rim cylinder includes 2 keys.

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Quality:

Meets ANSI 156.3-2001 Grade 1 standards
UL listed for fire exit hardware
3 year Limited warranty

Special Orders Available:

More unlisted finishes available
RX, LX or SS switches avialable

Available Options: Choose Options Above

Finish:
Rail Size:
Rail Size
3’ rail for 28” to 36”’ door width

4’ rail for 34” to 48” door width
- 3 FT
- 4 FT
Cylinder Rim:
Cylinder Rim
Rim cylinder includes 2 keys.
- Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
- No Rim Cylinder Needed
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR

Product at A Glance

For all types of single and double doors with mullion
QEL option (Quiet Electric Latch Retraction). The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
The QEL option does not include the power transfer from door to frame, the power supply, or the control operator .
The QEL feature is an alternative to manual dogging.
Quiet motorized operation
Covers stock hollow metal doors with 86 or 161 cutouts on single doors

Style	Rim exit device
Grade	Heavy duty
Trim	Lever trim - 996L: - Key locks and unlocks lever
Handing	Handed
Center Case Dimensions	8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions	2-1/4" X 2-1/4"
Strike	299 (dull black)
Latch Bolt	Deadlocking - 3/4" throw
Projection	- Pushbar neutral: 3-13/16" - Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device	- W/o mullion: 39-13/16" - With mullion: 39-11/16"

More Info

This exit device includes a special feature known as Quiet Electric retraction (QEL). This feature will enable you to unlatch the exit device from a remote, convenient location. You can simply flip a switch from the comfort of your desk to retract the bolt thereby making it possible to operate the door just by pushing or pulling it.
