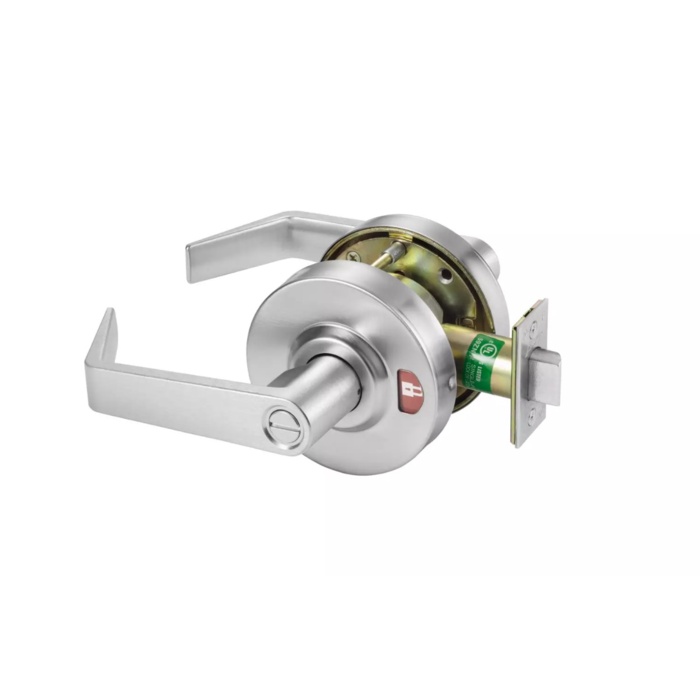

Arrow Cylindrical Lock with Privacy Indicator

Arrow APL02-ST-26D-306-Q73

Cylindrical Lock with Privacy Indicator

Price: $205.00 /each

SKU: APL02-ST-26D-306-Q73

Arrow's APL Series cylindrical lock with status indicators provides enhanced privacy at a glance with its bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 16 hours 7 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

Features:
  • Patended-design
  • Visual status indicators in rose, displaying bold visuals for vacant or occupied lock status
  • Cylindrical lock construction provides durability and longevity
  • Door Preparation: Requires standard 2-1/8” bore through the door with through bolts.
  • Backset: 2-3/4 (70mm) standard with 2-3/8” (60mm) optional.
  • Exposed Trim: Levers are pressure cast zinc,. Roses are wrought brass or stainless steel.
  • Rigid outside lever when locked.
  • Non-handed

Benefits:
  • BHMA Certified Grade 1; ADA-compliant
  • Available finishes: 605, 613E, 626, BSP
  • Status indicator window allows the end user to clearly see if the door in locked at a glance. Quick and easy installation makes upgrading to accommodate a status indicator simple and cost effective.
  • Allows for one motion egress and prevents lockouts from unoccupied rooms.

Certifications:

Product at A Glance

Backset 2-3/8" - 2-3/4"
Handing Non-handed
Latchbolt 1/2"
Door Thickness 1-3/8" - 1-3/4"
Strike 4-7/8" Curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
