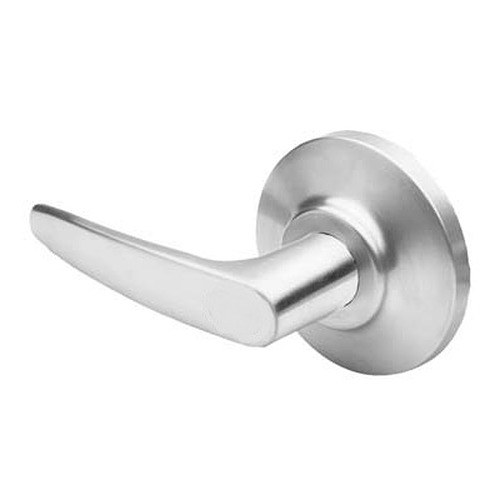

Best 7KC20N16DS3-626

Special Order Standard Duty Passage Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Passage Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7KC20N16DS3-626

This Best 7KC30NDS3 is a passage lever for facilities with medium traffic flow on interior doors. It will fit doors that are between 1-3/8" to 2" thick. Passage function levers are free for egress on the inside and outside at all times.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time

Product at A Glance

  • The inside rose is snap-on with no exposed mounting screws
  • Through-bolt mounting studs increase torque resistance
Style With #16 Curved Lever ,No Return
Grade Standard duty
Function Passage Function;
- Both levers are always unlocked
Backset 2-3/8"
Handing Non-handed
Rose "D" style with 3-1/2" diameter
Door Thickness 1-3/8" to 2"
Latch - 1/2" throw deadlocking latch
- front: 2-1/4" x 1-1/8"
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip and box (ANSI A115.2 for 1-3/4" doors)

More Info


Best Access Systems  7KC series of cylindrical levers are suitable for door applications that are subject to an average flow of traffic on a standard day. They are for interior doors that have a thickness between 1-3/8” to 2”. The “D” style rose is included and the inside rose is snap-on mounting without any exposed screws.
