Best 9K37ABDS3

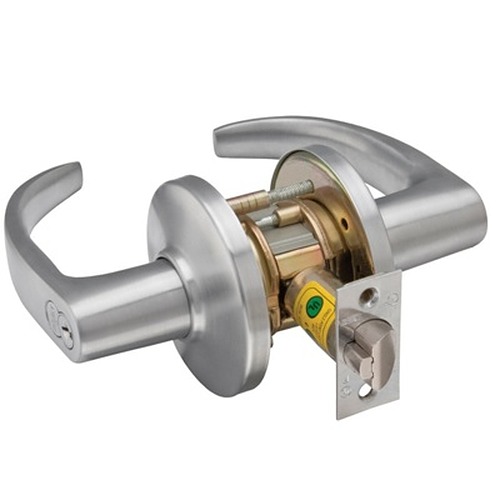

Heavy Duty Interchangeable Core Entry Lever

Quick Product Details

  • Interchangeable Core Lever
  • Heavy Duty
  • Entrance/Office function
Price: $399.00 /each

SKU: 9K37ABDS3

Choose Options Below

This Best Access System 9K37ABDS3 interchangeable core lever is heavy duty and conforms with ANSI/BHMA A156.2 series 4000 Grade 1 standards. It operates with the entrance/office function requiring the use of a key when the pushbutton is depressed.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $399.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

605 Polished Brass + $27.00 605 Polished Brass +$27.00
626 Satin Chrome 626 Satin Chrome
613 Oil Rubbed Bronze + $12.00 613 Oil Rubbed Bronze +$12.00

Choose Lever Style:

14 Curved Return 14 Curved Return
15 Contour Angle Return 15 Contour Angle Return
16 Curved 16 Curved

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$31.00
100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $33.00 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$33.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Overview


Quality and safety:
  • ADA compliant
  • UL Listed for 3-hour A label single swinging doors (4' x 8' )fire doors
  • Listed by ANSI/BHMA for A156.2, Series 4000, Grade 1.

Available Options: Choose Options Above

  • Finish:

  • Lever Style:

    • 14 Curved Return
    • 15 Contour Angle Return
    • 16 Curved
  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed

Product at A Glance

  • Accepts Best 7-pin interchangeable cores, core is not included
  • In addition to standard door preparation (ANSI A115.2 for 1-3/4” doors), through-bolts require two 5/16” diameter holes located at 12 o’clock and 6 o’clock positions
  • Through-bolt mounting studs increase torque resistance
Style Interchangeable Core Lever
Grade Heavy duty
Function Entrance/Office Function:
- Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked
- Pushing the button in locks the outside lever until it is unlocked by key or by rotating the inside lever
Backset 2-3/4"
Handing Non-handed
Rose 3-1/2" diameter
Door Thickness 1-3/4"
Latch - deadlocking latch
- 1/2" throw
- front: 2-1/4"x 1-1/8"
- (ANSI A115.2 for 1 3/4" doors)
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip

More Info


A lever lock that accepts interchangeable cores is highly useful for commercial applications. An interchangeable core can easily be removed, without disassembling the lock, to insert a new core. This can be helpful when a key is misplaced or for safety or security purposes. This lever is for heavy duty applications in commercial areas.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
