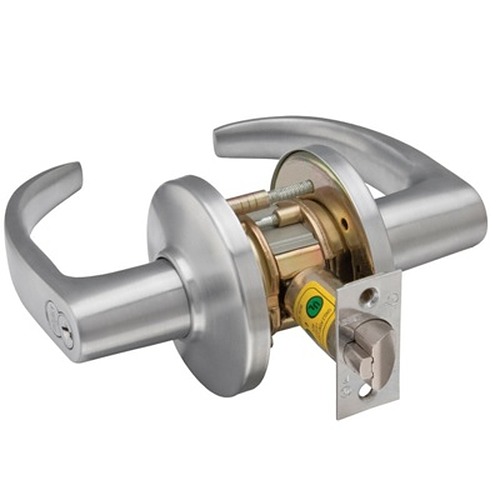

Best 9K37DDS3

Heavy Duty Interchangeable Core Storeroom Lever

Quick Product Details

  • Interchangeable Core Lever
  • Heavy Duty
  • Storeroom Function
Price: $568.00 /each

SKU: 9K37DDS3

Choose Options Below

This Best Access Systems 9K37DDS3 is a high quality, heavy duty interchangeable core lever that operates with the storeroom function. This lock accepts 7 pin interchangeable cores. Through-bolt mounting screws will increase torque resistance.

  • Stock Item
  • Order in the next 35 hours 38 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $568.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome
613 Oil Rubbed Bronze + $19.00 613 Oil Rubbed Bronze +$19.00

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$40.00
AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $35.00 AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$35.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Choose Lever Style:

14 Curved Return 14 Curved Return
15 Contour Angle Return 15 Contour Angle Return
16 Curved 16 Curved

Overview


Quality and safety:
  • ADA compliant
  • UL Listed for 3-hour A label single swinging (4' x 8') fire doors
  • Listed ANSI/BHMA A156.2 Series 4000, Grade 1

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed
  • Lever Style:

    • 14 Curved Return
    • 15 Contour Angle Return
    • 16 Curved

Product at A Glance

  • Accepts Best 7-pin interchangeable cores, core is not included
  • In addition to standard door preparation (ANSI A115.2 for 1-3/4” doors), through-bolts require two 5/16” diameter holes located at 12 o’clock and 6 o’clock positions
  • Through-bolt mounting studs increase torque resistance
Style Interchangeable Core Lever
Grade Heavy duty
Function Storeroom Function:
- Outside lever is always locked
- Key in the outside lever retracts the latch, lever remains locked
- Inside lever is always free
Backset 2-3/4"
Handing Non-handed
Rose 3-1/2" diameter
Door Thickness 1-3/4"
Latch - deadlocking latch
- 1/2" throw
- front: 2-1/4"x 1-1/8"
- (ANSI A115.2 for 1 3/4" doors)
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip

More Info


A storeroom function lever can be used in many applications aside for a storeroom entrance. Its outside lever is constantly locked and can only be opened with a key to retract the latch while the lever remains locked. For safety purposes, the inside lever is always unlocked which ensures that no one gets locked into the room.
