Best 7KC30NDS3

Standard Duty Passage Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Passage Function
Price: $195.00 /each

SKU: 7KC30NDS3

Choose Options Below

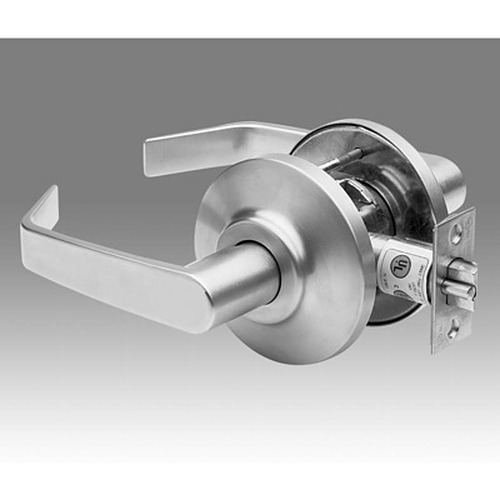

This Best 7KC30NDS3 is a passage lever for facilities with medium traffic flow on interior doors. It will fit doors that are between 1-3/8" to 2" thick. Passage function levers are free for egress on the inside and outside at all times.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $195.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome
613 Oil Rubbed Bronze + $19.00 613 Oil Rubbed Bronze +$19.00

Choose Lever Style:

14 Curved Return 14 Curved Return
15 Contour Angle Return 15 Contour Angle Return
16 Curved 16 Curved

Overview


Quality and Safety:
  • ADA compliant
  • UL Listed for 3-hour A label single swinging (4' x 8' ) fire doors
  • Listed ANSI A156.3, Grade 2

Available Options: Choose Options Above

Product at A Glance

  • The inside rose is snap-on with no exposed mounting screws
  • Through-bolt mounting studs increase torque resistance
Style Lever
Grade Standard duty
Function Passage Function;
- Both levers are always unlocked
Backset 2-3/4"
Handing Non-handed
Rose "D" style with 3-1/2" diameter
Door Thickness 1-3/8" to 2"
Latch - 1/2" throw deadlocking latch
- front: 2-1/4" x 1-1/8"
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip and box (ANSI A115.2 for 1-3/4" doors)

More Info


Best Access Systems  7KC series of cylindrical levers are suitable for door applications that are subject to an average flow of traffic on a standard day. They are for interior doors that have a thickness between 1-3/8” to 2”. The “D” style rose is included and the inside rose is snap-on mounting without any exposed screws.
