Best 9K37GDS3-626

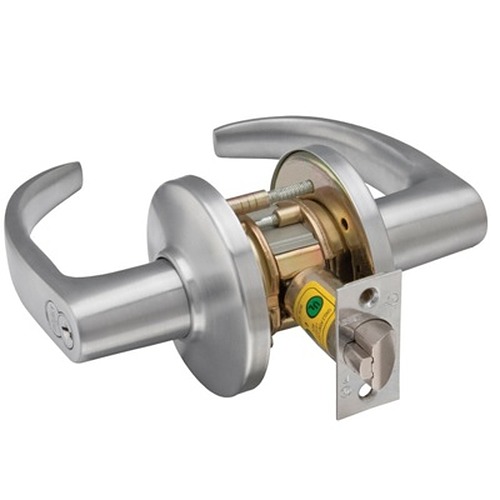

Special Order Heavy Duty Interchangeable Core Storeroom Double Cylinder Lever

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9K37GDS3-626

Choose Options Below

The Best Access Systems 9K37GDS3 double cylinder Storeroom function.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$28.00
100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $31.00 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$31.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose Lever Style:

14 Curved Return
15 Contour Angle Return
16 Curved

Overview

Special order non stock item with 8 week led time
  • Heavy Duty grade 1 commercial double cylinder storeroom lever.
  • The function requires 2 IC cores. Accepts 2 Best 7-pin interchangeable cores, cores not included.
  • Can be locked/unlocked from outside or inside with key only.
  • ADA compliant.
  • 2-3/4" backset.
  • Rose has a 3-1/2" diameter.
  • S3 ANSI strike -4-7/8” x 1-1/4” with curved lip.
  • Non handed. For doors 1-3/4" thick.
  • Through-bolt mounting studs increase torque resistance.

Available Options: Choose Options Above

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed
  • Finish:

  • Lever Style:

    • 14 Curved Return
    • 15 Contour Angle Return
    • 16 Curved

More Info

  • UL- 9K series – Listed by Underwriters Laboratories for use on 3 Hr, A label fire doors for single or double swinging doors.
  • Listed by BHMA for A156.2, Series 4000, Grade 1.
  • In addition to standard door preparation (ANSI A115.2 for 1 3/4” doors), two additional holes are needed for through-bolts.
  • Through-bolts require two 5/16” diameter holes located at 12 o’clock and 6 o’clock positions.
  • Latch– 1/2” throw deadlocking latch, front: 2 1/4” x 1 1/8”. . (ANSI A115.2 for 1 3/4” doors).
