Best 9K37SDS3-626

Special Order Heavy Duty Interchangeable Core Communicating Lever

Quick Product Details

  • Interchangeable Core Lever
  • Heavy Duty
  • Communication Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9K37SDS3-626

Choose Options Below

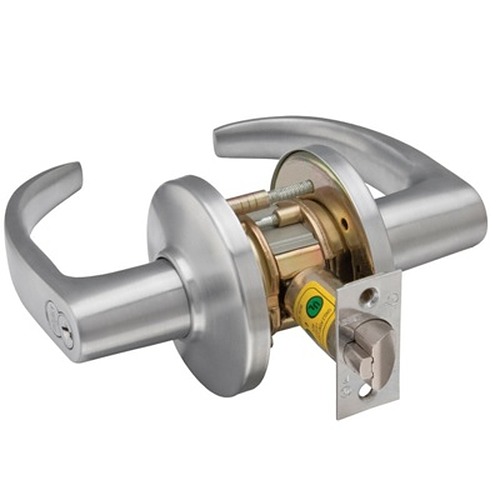

This Best Access Systems 9K37SDS3 is a high quality, heavy duty interchangeable core lever that operates with the communicating function. This lock requires two 7 pin interchangeable cores in order to function properly. Through-bolt mounting screws will increase torque resistance.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$70.00
AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $68.00 AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$68.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Choose Lever Style:

14 Curved Return 14 Curved Return
15 Contour Angle Return 15 Contour Angle Return
16 Curved 16 Curved

Overview


Quality and safety:
  • ADA compliant
  • UL Listed for 3-hour A label single swinging (4' x 8') fire doors
  • Listed ANSI/BHMA A156.2 Series 4000, Grade 1

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed
  • Lever Style:

    • 14 Curved Return
    • 15 Contour Angle Return
    • 16 Curved

Product at A Glance

  • Accepts 2 Best 7-pin interchangeable cores, cores are not included
  • In addition to standard door preparation (ANSI A115.2 for 1-3/4” doors), through-bolts require two 5/16” diameter holes located at 12 o’clock and 6 o’clock positions
  • Through-bolt mounting studs increase torque resistance
Style Interchangeable Core Lever
Grade Heavy duty
Function Communication Function:
- Both levers are always locked
- Key in the outside lever unlocks the outside lever
- Key in the inside lever unlocks the inside lever
Backset 2-3/4"
Handing Non-handed
Rose 3-1/2" diameter
Door Thickness 1-3/4"
Latch - deadlocking latch
- 1/2" throw
- front: 2-1/4"x 1-1/8"
- (ANSI A115.2 for 1 3/4" doors)
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip

More Info


A communicating function lever is useful when two rooms are separated by one door. Both of its levers are constantly locked and can be unlocked with a key.
