Best 9K37WDS3-626

Special Order Heavy Duty Interchangeable Core Institutional Lever

Quick Product Details

  • Interchangeable Core Lever
  • Heavy Duty
  • Institutional Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9K37WDS3-626

Choose Options Below

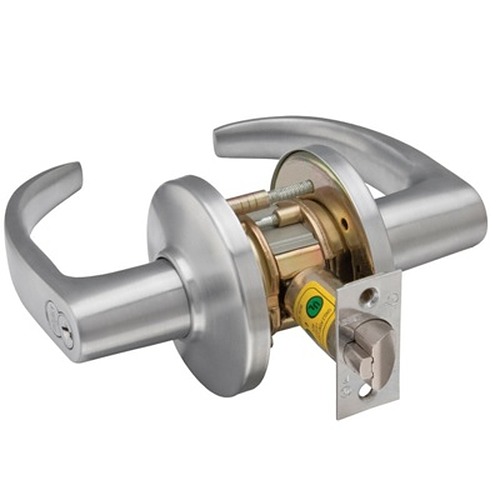

This Best Access Systems 9K37SDS3 is a high quality, heavy duty interchangeable core lever that operates with the Institutional function. This lock requires TWO 7 pin interchangeable cores in order to function properly. Through-bolt mounting screws will increase torque resistance.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$70.00
AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $68.00 AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$68.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.

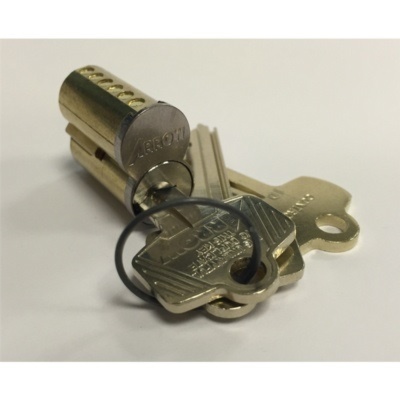

  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Choose Lever Style:

14 Curved Return 14 Curved Return
15 Contour Angle Return 15 Contour Angle Return

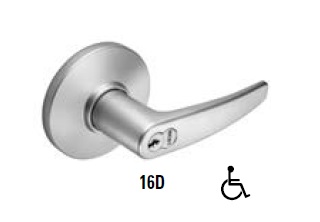

16 Curved 16 Curved

Overview

Special order non stock item with 4 week lead time
Quality and safety:
  • ADA compliant
  • UL Listed for 3-hour A label single swinging (4' x 8') fire doors
  • Listed ANSI/BHMA A156.2 Series 4000, Grade 1

Available Options: Choose Options Above

  • Finish:

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • AWHOUSE-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed
  • Lever Style:

    • 14 Curved Return
    • 15 Contour Angle Return
    • 16 Curved

Product at A Glance

  • Accepts 2 Best 7-pin interchangeable cores, cores are not included
  • In addition to standard door preparation (ANSI A115.2 for 1-3/4” doors), through-bolts require two 5/16” diameter holes located at 12 o’clock and 6 o’clock positions
  • Through-bolt mounting studs increase torque resistance
Style Interchangeable Core Lever
Grade Heavy duty
Function Institutional Function:
- Both levers are always locked and cannot be unlocked
-Latch operated by turning the key in the inside or outside lever
Backset 2-3/4"
Handing Non-handed
Rose 3-1/2" diameter
Door Thickness 1-3/4"
Latch - deadlocking latch
- 1/2" throw
- front: 2-1/4"x 1-1/8"
- (ANSI A115.2 for 1 3/4" doors)
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip

More Info

Locksets that secure both sides of the door are controlled by building codes and the Life Safety Code. Delay in unlocking for rapid emergency exit could be hazardous or even fatal.
