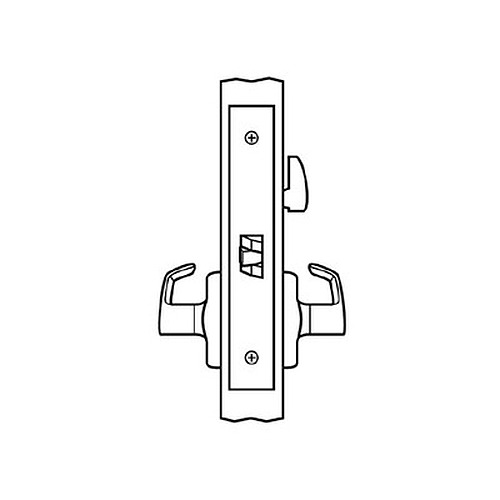

Corbin Russwin ML2060LL

Privacy Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Privacy Function
Price: $389.00 /each


Choose Options Below

This Corbin Russwin ML2060LL privacy function mortise lock body is designed to work in conjunction with lever trims. To ensure your privacy whenever necessary, the outside lever can be locked with a thumbturn on the inside which is then released by closing the door or rotating the inside lever.

  • Stock Item
  • Order in the next 1 hour 23 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $389.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin chrome 626 Satin chrome
625 Polished Chrome 625 Polished Chrome
605 Polished Brass 605 Polished Brass
613 Dark Bronze 613 Dark Bronze


Quality and Safety:
  • Meets ANSI/BHMA A156.3 series 1000 Grade 1 operational and security requirements
  • Complies with ADA - Americans with Disabilities Act
  • 10 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Includes lock body, armored front, strike and screw pack
  • Levers and 1-1/8” mortise cylinder are not included
  • This body works with lever trim
Style Mortise lock body
Function Privacy Function:
- thumbturn on the inside lever locks the outside lever
-thumbturn is released when the door is closed or the inside lever is rotated
- Emergency release on the outside lever
- ANSI F22
Handing Field reversible, shipped right hand.
Door Thickness 1-3/4"
Backset 2-3/4"
Body Dimensions 5-7/8" x 4" x 15/16"
Strike ANSI standard 4-7/8" - 1-1/4" straight lip
Outside Front Plate 8" x 1-1/4" - accommodates flat doors and doors that are beveled 1/8"

More Info

Corbin Russwin ML2000 series mortise locks are the toughest on the market for all rigid commercial, industrial or institutional applications. This lock body operates with the privacy function and it is designed to work with a lever trim. The package is furnished with a lock body, an armored front, a straight lip strike and a pack of screws.
