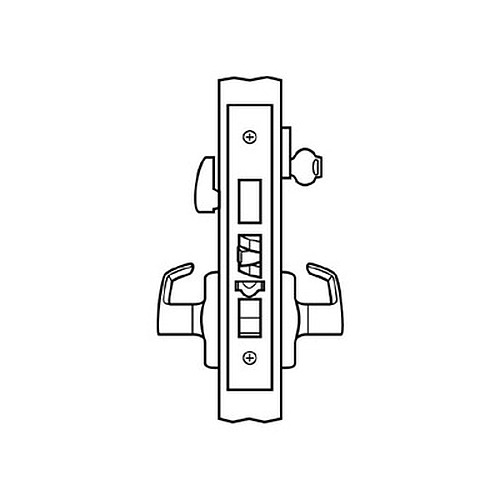

Corbin Russwin ML2067LL

Apartment or Dormitory Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Apartment/Dormitory Function
Price: $389.00 /each

SKU: ML2067LL

Choose Options Below

This Corbin Russwin ML2067LL is an apartment/dormitory function mortise lock body. It is manufactured with high quality materials to meet ANSI/BHMA Grade 1 operational and security standards. The ML2000 series locks have guaranteed long life even with rigorous traffic conditions.

  • Stock Item
  • Order in the next 3 hours 23 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $389.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin chrome 626 Satin chrome
625 Polished Chrome 625 Polished Chrome
605 Polished Brass 605 Polished Brass
613 Dark Bronze 613 Dark Bronze

Overview


Quality and Safety:
  • Meets ANSI/BHMA A156.3 series 1000 Grade 1 operational and security requirements
  • Complies with ADA - Americans with Disabilities Act
  • 10 year limited warranty
  • Auxiliary latch deadlocks latchbolt

Available Options: Choose Options Above

Product at A Glance

  • Includes lock body, armored front, strike and screw pack
  • Levers and 1-1/8” mortise cylinder are not included
  • This body works with lever trim
Style Mortise lock body
Function Apartment/Dormitory Function:
- Latchbolt is operable with both levers unless outside lever is locked by toggle-action stop or by projection of deadbolt
- Deadbolt is projected and retracted with a key in the outside lever or thumbturn on the inside
- Inside lever will simultaneously retract latchbolt and deadbolt while outside lever remains locked
- Outside lever is unlocked by toggle-action stop
- Note: Occupancy Indicator shows deadbolt position only
- ANSI F20
Handing Field reversible
Door Thickness 1-3/4"
Backset 2-3/4"
Body Dimensions 5-7/8" x 4" x 15/16"
Strike ANSI standard 4-7/8" - 1-1/4" straight lip
Outside Front Plate 8" x 1-1/4" - accommodates flat doors and doors that are beveled 1/8"

More Info


This ML2067LL is a mortise lock body designed to work with a lever trim. It operates with the apartment/dormitory function. Just like all Corbin Russwin ML2000 series mortise locks, this lock is heavy duty, made of superb quality materials and extremely durable for all your high traffic, rigorous applications.
