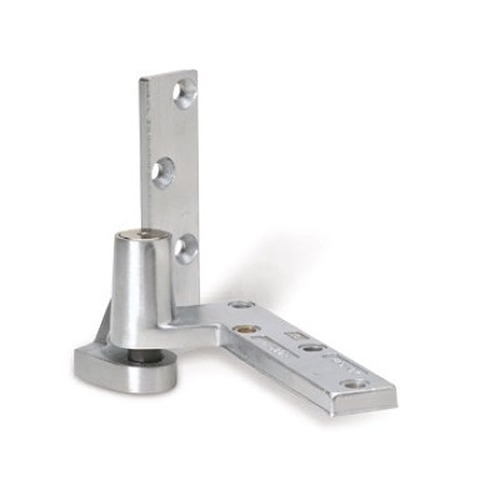

Ives 7215-SET -26D

Offset Pivot Set Side Jam Mount

Quick Product Details

  • Pivot Set
  • Offset
Price: $357.00 /each

SKU: 7215-SET -26D

Choose Options Below

This Ives 7215-SET is a side jamb mounting 3/4" offset pivot set for doors up to 500 lbs. It includes a top and bottom pivot.

  • Stock Item
  • Order in the next 37 hours 54 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $357.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

left HAND SHOWN Left Hand (LH)
RIGHT HAND SHOWN Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview


Quality and Safety:
  • Meets ANSI/BHMA A156.4 C07131
  • Ul Listed 20 minute fire doors.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Top pivot mounts to the top header of the door
  • Bottom pivot gets side jamb mounted.
  • For door heights over 7'0" high use one 7215 INT Intermediate pivot for every every additional 30" of door height.
  • Includes stainless steel machine screws and wood screws
  • Positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.
  • Vertical adjustment range is 3/16", with positive locking
Style Pivot Set
Application Offset
Offset 3/4"
Handing Handed
Door Thickness Minimum 1-3/4"
Door Weight Maximum 500 lbs.
Finish Satin Chrome
