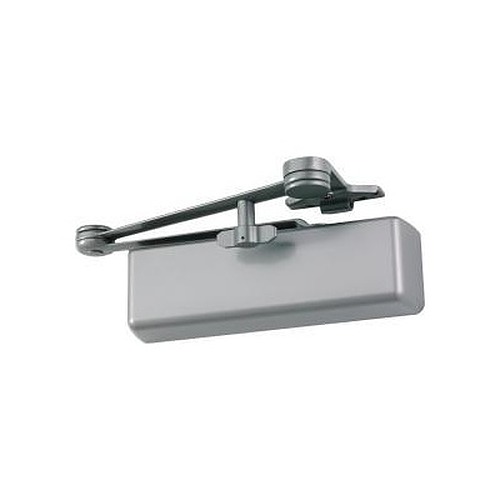

LCN 4111HCUSH

Smoothee Heavy Duty Hold Open CUSH Arm Adjustable Closer

Quick Product Details

  • Adjustable Door Closer
  • Hold-Open CUSH Arm
  • Heavy Duty
SKU: 4111HCUSH

Price: $373.00 /each

Choose Options Below

This LCN 4111HCUSH Smoothie Hold-Open CUSH Arm adjustable door closer is perfect for heavy traffic openings where the hold-open feature is necessary. Its cylinder is adjustable from size 1 through 5 and it is shipped set to size 3. This closer mounts on the push side of a door.

  • In Stock!
  • Order in the next 21 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $373.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL- Aluminum (689) AL- Aluminum (689)
DKBRZ -Dark Bronze (695) DKBRZ -Dark Bronze (695)

Choose Handing:

left HAND SHOWN Left Hand (LH)
RIGHT HAND SHOWN Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Replacing Your Door Closer?

Product Finder

Overview


Suited for :
  • High traffic institutional applications

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • Closer meets ADA requirements

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special order.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • HCUSH-N-STOP ARM, hold open, handed parallel arm features solid forged steel main arm and forearm with built-in stop in soffit shoe
  • 4111 Cylinder is adjustable from size 1 through size 5 and is shipped set to size 3
  • Mounting holes are spaced 2-1/2” vertically and 6" horizontally
  • Standard 4110 series closer is shipped with Extra Duty Arm, standard plastic cover,  4110-201 fifth screw spacer and self reaming and tapping screws
  • Supplied with All Weather Fluid
  • Cylinder is made of cast iron
Style Door closer
Grade Heavy Duty
Handing Handed
Mounting Push side only
Door Width - Interior doors: maximum 4'6"
- Exterior Doors: maximum 3'6"

This 4111 closer is supplied with the HCUSH-N-STOP arm which is a  hold-open parallel arm perfect for applications where the door is required to remain open. A hold-open arm is not permitted on fire-rated doors since they need to close on their own. This closer mounts on the push side of the door and its spring size is adjustable from 1 through 5.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Smoothee Heavy Duty Hold Open CUSH Arm Adjustable Closer
