Norton 6031

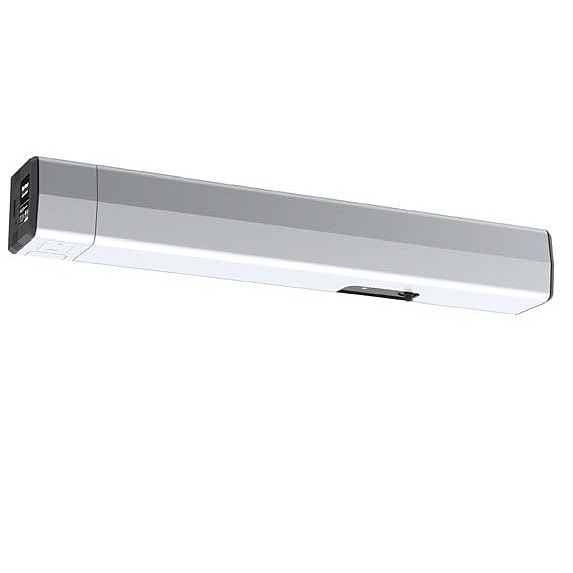

Powermatic Push Side Low Energy Power Operator

Quick Product Details

  • Powermatic Low Energy Door Operator
  • For Interior and Exterior doors
  • Push-Side Mount
  • Replace the 6030 Operator
  • For Heavy Duty Abusive Applications or High Traffic Applications
Price: $3,138.00 /each

SKU: 6031

Choose Options Below

This Norton 6031 is a push side mounted powermatic low energy door operator for interior and exterior doors is a heavy-duty unit designed for rigorous, high-use applications. This door operator is ANSI/BHMA A156.19 certified and it is ETL tested to UL/ULc standards for automatic doors used on fire and smoke barrier applications.

  • In Stock!
  • Order in the next 5 hours 8 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $3,138.00

Choose Finish:

AL-689 Aluminum Painted AL-689 Aluminum Painted

Overview


Suited For:
  • Interior and exterior  doors with moderate to high traffic
TQuality and Safety:
  • ANSI/BHMA A156.19 certified.
  • ETL tested to UL/ULc standards for automatic doors used on fire and smoke barrier doors.
  • Meets requirements for Americans with Disabilities Act (ADA)
  • Meets requirements for UL10C for positive pressure
  • 2 year limited warranty
  • ELECTRICAL DATA
     Power input 120 VAC, 60 Hz (+10%, -15%)
     Current draw 0.9A (single), 1.8A (double)
     Auxiliary output 24 VDC @ 1.3A
     SPDT relay output for controlling electric strikes or electric locks not to exceed 1 amp @ 30 VDC
  • ANSI/BHMA A156.19 certified
     ETL tested to UL / cUL standards for automatic doors used on fire and smoke barrier doors and CSA C22.2
    No. 247 for operators and systems of doors
     UL10C listed for positive pressure fire test
     Comply with requirements for the Americans with Disabilities Act (A.D.A)
     California State Fire Marshall Listing 3266-0944:0110

Available Options: Choose Options Above

Product at A Glance

  • Electrohydraulic units are used in applications where doors are typically operated manually but can also be activated via wall switches, motion sensors, etc. for automatic operation.
  • Push and Go selector, as the door is manually opened, the operator "senses"movement and opens door to the full-open position.
  • Operates as mechanical surface closer during close cycles or if power is turned off.
  • Infinite Hold Open - Door will hold open at set position until power is turned off.
  • Onboard power supply to handle multiple system peripherals.
  • 24VDC @ 1.3A output for connection of electric strike, lock.
  • Obstruction Detection - Motor stops if door is obstructed during opening or closing.
  • Push and Go feature - as the door is manually opened, the operator "senses" movement and opens door to the full-open position.
  • Unit activation options: wall switches, motion sensors or radio frequency devices
  • Modular construction for easy, one person installation.
  • Single pole double throw (SPDT) relay output
  • Vestibule delay adjustment
Style Powermatic Low Energy Door Operator
Mounting Push Side (stop side)
Door Handing Non-handed
Power Input 120VAC, 60 Hz
Reveal 2-3/4" to 6-7/8"
Door Opening Maximum 110° (can be opened manually to 180°)

More Info


The many features the 6000 series Powermatic low energy door operator are designed with the user in mind, this operator features simple to use electronics, an onboard power supply and easy integration into access control systems.  This 6030 model installs on the push side of a door and it will allow the door to swing open a maximum of 110 degrees.
