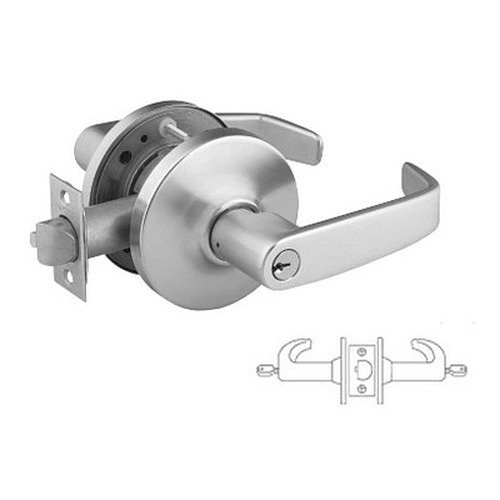

Sargent 70-10G16-LL-US26D

Special Order Heavy Duty Classroom Security Intruder Lever

Quick Product Details

  • Lever Set
  • Heavy Duty
  • Classroom Security Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 70-10G16-LL-US26D

Choose Options Below

This Sargent 10G16 is a 10 Line classroom security function lever lock. It is constructed for heavy duty interior and exterior applications with a lock lever design that conforms with the fire and safety requirements set on a national and state level for bored locks. Also, greatly exceeds ANSI/BHMA 156.2 series 4000 Grade 1 standards.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome (US26D) Satin Chrome (US26D)

Choose Cylinder:

70 Prepped for Best Type IC Core 70 Prepped for Best Type IC Core

Help Me Decide

Sargent  6 pin LA keyway keyed different

Standard Sargent cylinder


60-prepped for Sargent brand removable core(core not included)

Large Format Removable Core

Easily rekeyed without disassembling entire lock. Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

No cylinder

Cylinder not included


Choose Lever:



Suited for:
  • Commercial and institutional heavy duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL listed to U.S.A. and Canadian safety standards; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 7 year limited warranty
  • Deadlocking latch to prevent lockpicking by credit card
  • Resists vandalism

Door preparation: (161 standard modified with 2 through-bolt holes)
  • Cross-borehole - 2-1/8”
  • Backset - 2-3/4”
  • 1” edge borehole
  • Mortise - width 1-1/8”, height 2-1/4”

  • Can be easily installed in one minute or less
  • Includes easy to follow instruction sheets
  • Packaging is user friendly
  • Installation diagram is conveniently displayed on box

Available Options: Choose Options Above

  • Finish:

  • Cylinder: info icon

    • 70 Prepped for Best Type IC Core
  • Lever:

    • L

Product at A Glance

Non-Stock Special Order with 2-3 week lead time.

Requires SFIC combinated core with operating and control keys, not included
Style Key-in-lever lock, less SFIC
Grade Heavy Duty
Function Classroom Security Function:
- Key in the inside or outside lever locks or unlocks the trim
- When locked by key in the inside lever, key in the outside lever retracts latch but does not release the trim
- Inside lever is always free
- Locking direction is engraved on the inside rose.
- ANSI F110
Handing Non-handed
Backset 2-3/4"
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (stainless steel)
Throw 1/2"
Door Thickness 1-3/4" adjustable to 2"
Stile Minimum 4-1/2"
Design - Rose - L style
- Lever - select above

More Info

Here is the perfect solution to all your classroom security issues. This 10G16 Sargent lever operates with the classroom security function to provide for extra protection. It is a double-cylinder lever set in which a key in the inside or outside lever will lock and unlock the trim. However, when it is locked with the inside key,  the key in the outside lever will retract the latchbolt but it will not release the trim.
