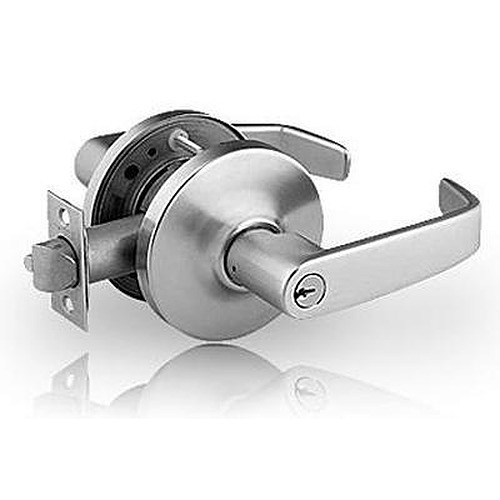

Sargent LC-28-10G24-LL-26D

Special Order Heavy Duty Entrance or Office Lever

Quick Product Details

  • Lever Set
  • Heavy Duty
  • Entrance/Office Function
SKU: LC-28-10G24-LL-26D

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This Sargent 10G24 is a great 10 Line cylindrical key-in-lever lock suitable for heavy duty applications in commercial and institutional buildings such as educational, municipal and medical facilities.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Overview


  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL listed to U.S.A. and Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • Deadlocking latch to prevent lock picking by credit card
  • Resists vandalism



Available Options: Choose Options Above

Product at A Glance

Door preparation: (161 standard modified with 2 through-bolt holes)Cross-borehole - 2-1/8”
  • Backset - 2-3/4”
  • 1” edge borehole
  • Mortise - width 1-1/8”, height 2-1/4”
Style Key-in-lever lock less cylinder
Grade Heavy duty
Function Entrance or Office Function:
-locked by push button in inside lever<>- Push button released by key or turning inside lever
- Key in outside lever retracts latch when outside lever is locked and releases inside push button
- Closing door does not unlock outside lever or release button
Handing Non-handed
Backset 2-3/4"
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8"
Throw 1/2" (stainless steel)
Door Thickness 1-3/4" adjustable to 2"
Stile Minimum 4-1/2"
Design - Rose - L style
- Lever - select above

More Info


When looking for a lock that will endure and withstand the constant abuse your facility is likely to be subject to while still ensuring the high standards of security Sargent locks are known for, the 10  line lever locks are a perfect choice. The 10G05 is ideal for your private office. It requires a key for entry when the push-button on the inside lever is depressed and rotated. This function gives you the option of locking the outside lever from the inside to maintain privacy or leaving it unlocked for free entry.
