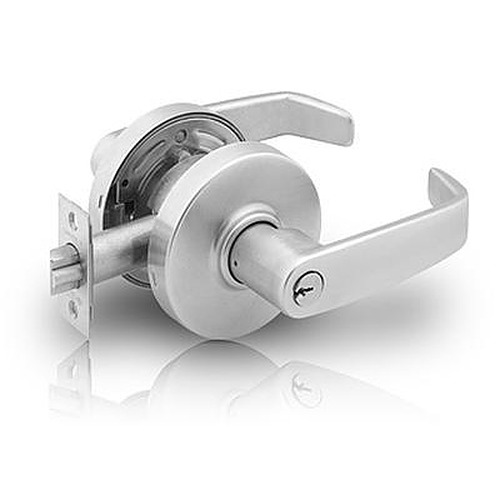

Sargent SR20-7G37-LL-26D-LA-KD

Special Order Standard Duty Classroom Lever

Quick Product Details

  • Lever Set
  • Standard Duty
  • Classroom Function
  • 2-3/8" Backset
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: SR20-7G37-LL-26D-LA-KD

This Sargent 7G37 7 Line standard duty lock is designed for classroom-like functions in commercial exterior and interior doors. It is lockable by key on the outside lever and always free on the inside. It is suited for use in medical clinics, offices, hotels, motels, public buildings and government facilities.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock special order item with 4 week lead time
Suited for:
  • Standard duty commercial exterior and interior doors

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 2 durability standards
  • UL listed for USA and Canadian safety regulations; listed for use on 3-hour doors
  • 5 year limited warranty
  • Meets ADA requirements for barrier free accessibility
  • Deadlocking latch bolt to prevent lock picking by credit card

Door Preparation: (161 standard)
Conveniences:
  • Can be easily installed in one minute or less
  • Includes easy to follow instructions
  • Convenient  installation diagram on box



Product at A Glance

Style Key-in-lever lock
Grade Standard duty
Function Classroom Function:
- Lockable by key on the outside lever
- Inside lever is always free
- ANSI-F84
Handing Non-handed
Strike 4-7/8" curved-lip strike with a standard curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (brass)
Throw 1/2"
Door Thickness 1-3/4" standard
Backset 2-3/8"
Stile 4-1/2" minimum
Design - Rose - L style
- Lever - select above

More Info


Sargent 7 line levers are the perfect choice for your standard traffic, commercial application. This 7G37 lock is designed to protect the dignity of today’s teachers. The classroom function prevents students from being able to lock their teachers into the classroom. It features a cylinder on the outside only, while providing for constant egress on the inside lever.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
