Schlage L9040-06A-626

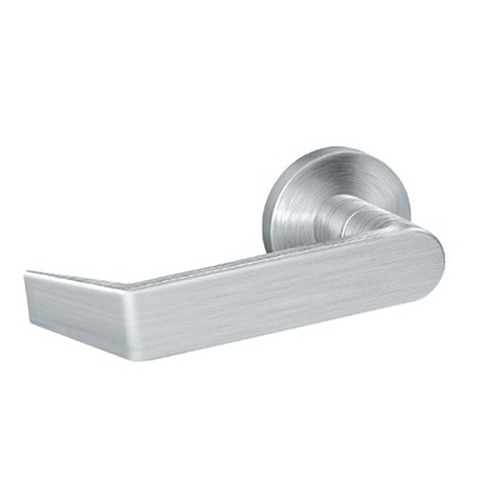

Bath/Bedroom Privacy Function Complete Mortise Lock with Lever and Rose

Quick Product Details

  • Complete Mortise Lock
  • Heavy Duty
  • Privacy/Bathroom Function

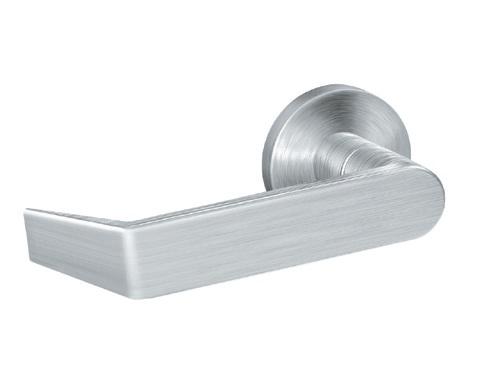

  • With 06 Style Lever and A style Rose

or for better pricing

Price: $794.00 /each

SKU: L9040-06A-626

Choose Options Below

This Schlage L9040 is a mortise lock set with a lever and rose contains everything necessary for a new or replacement application. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L9040 operates with the privacy function .

  • Stock Item
  • Order in the next 14 hours 29 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $794.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome-626 Satin Chrome-626

Choose Lever:

06 Lever with 06 Lever with "A" style rose

Help Me Decide

"A" style rose has a diameter of 2-1/8"


Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets ANSI/BHMA A156.13 series 1000 Grade 1 operational security requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 3 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Lever: info icon

    • 06 Lever with "A" style rose

Product at A Glance

Style Complete Privacy Mortise lock
Grade Extra heavy duty
Function Privacy Function:
- Outside lever retracts the latch bolt, unless it is locked by thumbturn on the inside
- Inside lever retracts the latch bolt and unlocks the outside lever
- Thumbturn locks and unlocks the outside lever
- Closing the door will unlock the outside lever
- Emergency release unlocks the outside lever
- ANSI F22
Handing Shipped right handed but easily reversible without disassembly
Backset 2-3/4" (standard)
Latch Stainless steel latch with anti-friction tongue
Throw 3/4"
Door Thickness 1-3/4"
Lock Body Size 4-7/16" X 6-1/16" X 1"
Armored Front 1-1/4" X 8" X 7/32"
Strike ANSI curved lip strike 1-1/4" X 4-7/8" X 1-3/16" lip, to center with dust box standard
