Schlage L9453LB

Entrance/Office Mortise Lock Body with Deadbolt

Quick Product Details

  • Mortise Lock Body
  • Heavy Duty
  • Entrance/Office With Deadbolt Function
SKU: L9453LB

Price: $151.00 /each

Choose Options Below

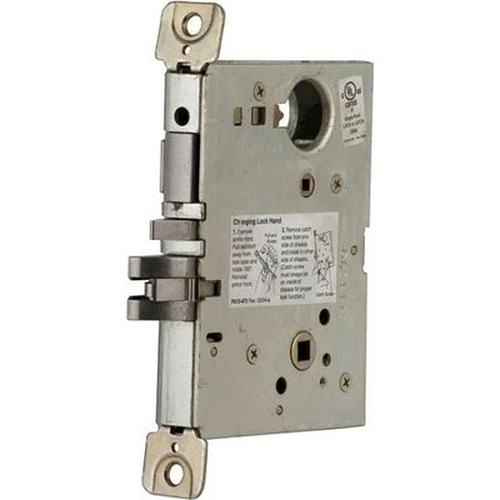

This Schlage L9453LB is an entrance/office with deadbolt function mortise lock body designed to deliver consistent, dependable operation and to stand up to constant use and abuse that extra heavy duty commercial applications are generally subject to. The package includes mounting screws and templates.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $151.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Armored Front:

Help Me Decide

  • Armor Front for L9453.
  • Satin chrome finish-626.
  • 1-1/4” x 8” x 7/32”.
  • Mounting screws are included with armor fronts.

Choose Strike:

Help Me Decide

Standard square corner strike for Schlage L9000 series mortise locks

1-1/4” x 4-7/8” x 13/16” Lip.

Satin chrome finish-626





Overview


Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets ANSI/BHMA A156.13 series 1000 Grade 1 operational security requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 3 year limited warranty

Available Options: Choose Options Above

  • Armored Front: info icon

    • No Armor Front Needed
    • Armor Front-Satin Chrome Finish (09-666)
  • Strike: info icon

    • No Strike Needed
    • Standard Strike for L9000 Series -Satin Chrome Finish (10-072)

Product at A Glance

  • Lock bodies are furnished with mounting screws and templates only.
  • Lock trim, armored front, strike and cylinders must be ordered separately.
Style Mortise lock body
Grade Extra heavy duty
Function Entrance/Office with Deadbolt Function:
- Latchbolt is retracted by either lever unless locked by 20 degree rotation of thumbturn
- When locked, key outside/lever inside will retract the deadbolt and latchbolt simultaneously
- Outside lever remains locked until the thumbturn is returned to vertical position
- Inside lever is always free
- ANSI F20
Handing Shipped right handed but easily reversible without disassembly
Backset 2-3/4" (standard)
Latch Stainless steel latch with anti friction tongue
Throw 3/4"
Door Thickness 1-3/4"
Lock Body Size 4-7/16" X 6-1/16" X 1"
Armored Front 1-1/4" x 8" x 7/32"
Strike ANSI curved lip strike 1-1/4" x 4-7/8" x 1-3/16" lip to center with dust box standard.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Entrance/Office Mortise Lock Body with Deadbolt
