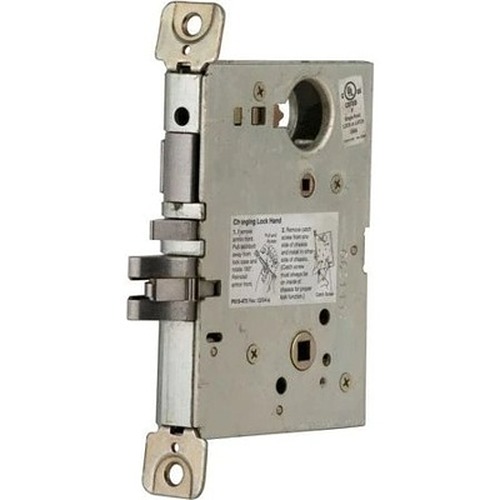

Schlage L9473LB

Non-Stock Special Order Dormitory Mortise Lock Body with Deadbolt

Quick Product Details

  • Mortise Lock Body
  • Heavy Duty
  • Dormitory with Deadbolt Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L9473LB

Choose Options Below

This Schlage L9473LB Dormitory mortise lock body with Deadbolt is ideal for use in schools, hospitals and factories where the hardware must deliver consistent, dependable operation and stand up to constant use and abuse. The latchbolt in this lockset can be retracted by either lever, and the deadbolt can be retracted and projected using a key in the outside lever or thumbturn on the inside lever.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $334.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Armored Front:

No Armor Front Needed
Armor Front- Satin Chrome Finish  (09- 664) + $33.00 Armor Front- Satin Chrome Finish (09- 664) +$33.00

Help Me Decide

  • Armor Front for L9456/L9473.
  • Satin chrome finish-626.
  • 1-1/4” x 8” x 7/32”.
  • Mounting screws are included with armor fronts.

Choose Strike:

No Strike Needed
Standard Strike for L9000 Series -Satin Chrome Finish (10-072) + $20.00 Standard Strike for L9000 Series -Satin Chrome Finish (10-072) +$20.00

Help Me Decide

Standard square corner strike for Schlage L9000 series mortise locks

1-1/4” x 4-7/8” x 13/16” Lip.

Satin chrome finish-626




Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets ANSI/BHMA A156.13 series 1000 Grade 1 operational security requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 3 year limited warranty

Available Options: Choose Options Above

  • Armored Front: info icon

    • No Armor Front Needed
    • Armor Front- Satin Chrome Finish (09- 664)
  • Strike: info icon

    • No Strike Needed
    • Standard Strike for L9000 Series -Satin Chrome Finish (10-072)

Product at A Glance

  • Lock bodies are furnished with mounting screws and templates only.
  • Lock trim, armored front, strike and cylinders must be ordered separately
Style Mortise lock body
Grade Extra heavy duty
Function Dormitory with Deadbolt Function:
- Latchbolt is retracted by either lever
- Deadbolt is retracted/projected by a key in the outside lever or the thumbturn inside
- ANSI F21
Handing Shipped right handed but easily reversible without disassembly
Backset 2-3/4" (standard)
Latch Stainless steel latch with anti-friction tongue
Throw 3/4"
Door Thickness 1-3/4"
Lock Body Size 4-7/16" X 6-1/16" X 1"
Armored Front 1-1/4" X 8" X 7/32"
Strike ANSI curved lip strike 1-1/4" X 4-7/8" X 1-3/16" lip, to center with dustbox standard
