Schlage L9040B

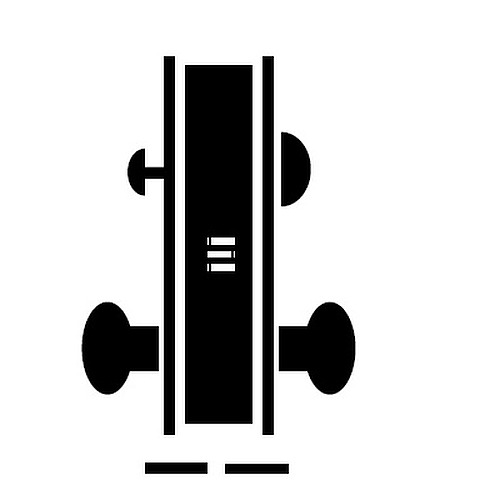

Bath/Bedroom Privacy Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Heavy Duty
  • Privacy/Bathroom Function
SKU: L9040B

Price: $122.00 /each

Choose Options Below

This Schlage L9040B is a privacy function mortise lock body generally used on bedroom or bathroom doors to ensure privacy without compromising on quality. Lock bodies are furnished with mounting screws and templates only. Lock trim, armored front, strike and cylinders must be ordered separately when necessary.

  • In Stock!
  • Order in the next 4 hours 15 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $122.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Armor Front L9010/9040:

No Armor Front Needed
Armor Front-Satin Chrome Finish (09- 662) + $21.00 Armor Front-Satin Chrome Finish (09- 662) +$21.00

Help Me Decide

  • Armor Front for L9010/9040.
  • 1-1/4” x 8” x 7/32”.
  • Satin chrome finish-626.
  • Mounting screws are included with armor fronts.

Choose Strike:

No Strike Needed
Standard Strike for L9000 Series -Satin Chrome Finish (10-072) + $13.00 Standard Strike for L9000 Series -Satin Chrome Finish (10-072) +$13.00

Help Me Decide

Standard square corner strike for Schlage L9000 series mortise locks

1-1/4” x 4-7/8” x 13/16” Lip.

Satin chrome finish-626





Overview


Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets ANSI/BHMA A156.13 series 1000 Grade 1 operational security requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 3 year limited warranty

Available Options: Choose Options Above

  • Armor Front L9010/9040: info icon

    • No Armor Front Needed
    • Armor Front-Satin Chrome Finish (09- 662)
  • Strike: info icon

    • No Strike Needed
    • Standard Strike for L9000 Series -Satin Chrome Finish (10-072)

Product at A Glance

  • Lock bodies are furnished with mounting screws and templates only.
  • Lock trim, armored front, strike and cylinders must be ordered separately.
Style Mortise lock body
Grade Extra heavy duty
Function Privacy Function:
- Outside lever retracts the latch bolt, unless it is locked by thumbturn on the inside
- Inside lever retracts the latch bolt and unlocks the outside lever
- Thumbturn locks and unlocks the outside lever
- Closing the door will unlock the outside lever
- Emergency release unlocks the outside lever
- ANSI F22
Handing Shipped right handed but easily reversible without disassembly
Backset 2-3/4" (standard)
Latch Stainless steel latch with anti-friction tongue
Throw 3/4"
Door Thickness 1-3/4"
Lock Body Size 4-7/16" X 6-1/16" X 1"
Armored Front 1-1/4" X 8" X 7/32"
Strike ANSI curved lip strike 1-1/4" X 4-7/8" X 1-3/16" lip, to center with dust box standard
