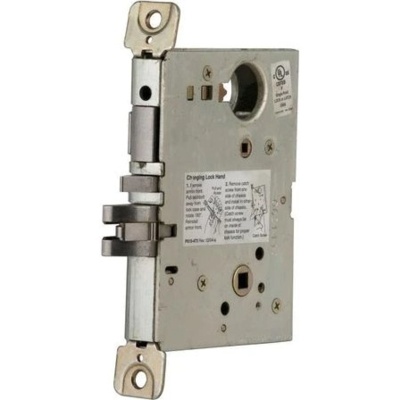

Schlage L9480LB

Storeroom with Deadbolt Function Mortise Lock Body and Armor Front

Price: $389.00 /each

SKU: L9480LB

Choose Options Below

The Schlage L9480 Storeroom with Deadbolt function mortise lock body comes with an Armor Front. Schlage L-series extra heavy duty mortise locks are built to withstand the rigors of daily use without fail. L9000 Series locks are ideal for use in schools, hospitals and factories, and must also deliver consistent, dependable operation and stand up to constant use and abuse.

  • Stock Item
  • Order in the next 18 hours 19 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $389.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D - Satin Chrome Finish US26D - Satin Chrome Finish
US19 - Flat Black Painted US19 - Flat Black Painted

Overview


  • Lock body and armor front only. Trim and cylinder required for lock to function.
  • For doors 1-3⁄4" thick standard.
  • Backset 2-3⁄4" only
  • Storeroom with Deadbolt function.
  • Latchbolt retracted by key outside or by lever inside.
  • Outside knob/lever always locked.
  • Deadbolt thrown or retracted by key outside or thumbturn inside.
  • Turning inside lever simultaneously retracts both deadbolt and latchbolt.
  • Inside lever is always free for immediate exit.

Available Options: Choose Options Above

More Info

  • Ansi F20, L9050 Entrance/Office function.
  • Handing -shipped right hand, easily field reversible without disassembly.
  • L style escutcheon size: 8" x 1 3⁄4" x 7⁄16".
  • Lock body size- 4-7/16” x 6-1/16” x 1”.
  • Armored Front-1-1/4” x 8” x 7/32”.
  • 3/4” throw stainless steel latch with anti-friction tongue.
  • Strike , ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16”  lip to center with dust box standard.
  • ANSI A156.13 Series 1000, Grade 1 Operational and Security, UL Listed for 3-hour fire door.
