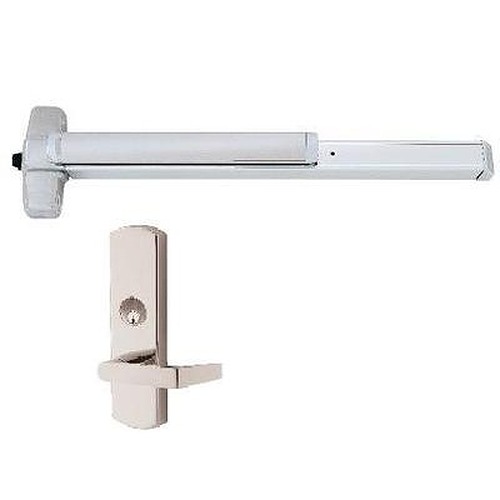

Von Duprin 99L-NL-US10

Special Order Rim Exit Device with Night Latch Lever Trim

Quick Product Details

  • Rim Exit Device
  • With Night Latch Lever Trim
  • Heavy Duty
  • Satin Bronze Finish-US10
SKU: 99L-NL-US10

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This Von Duprin 99L-NL is a terrific exit device that meets ANSI 156.3-20001 Grade 1 standards and is UL listed for fire exit hardware. It is a handed product available for right hand reverse and left hand reverse doors. Two rail sizes are available to suit the needs of your application.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$11.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $12.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$12.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose Finish:

US10-Satin Bronze US10-Satin Bronze

Overview

Special order non stock item with 4 week lead time
Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty



Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
  • Finish:

Product at A Glance

  • For all types of single and double doors with mullion
  • Quiet operation
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors
Style Rim exit device
Grade Heavy duty
Trim Night latch lever trim - 996L-NL Key retracts latch bolt. Lever Always Locked
Handing Handed
Dogging Feature Hex key dogging standard
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"

Reviews

Q&A

Videos

How to Install Von Duprin 98/99 Rim Exit Device thumbnail

How to Install Von Duprin 98/99 Rim Exit Device
