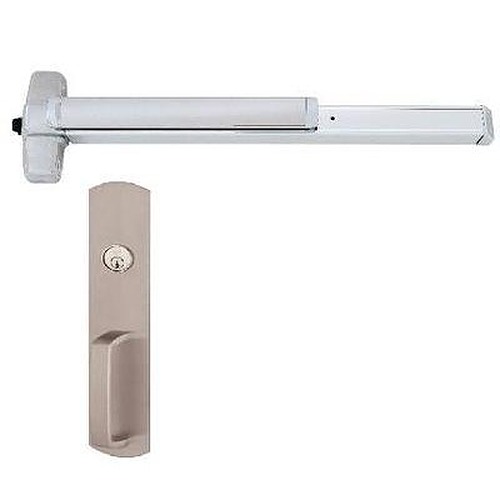

Von Duprin 99NL

Rim Exit Device with Night Latch Pull Trim

Quick Product Details

  • Rim Exit Device
  • With Night Latch Pull Trim
  • Heavy Duty
SKU: 99NL

Price: $851.00 /each

Choose Options Below

This Von Duprin 99NL rim exit device is a Grade 1, heavy duty product supplied with the night latch pull trim. When in the neutral position the pushbar projects 3-3/16" and when it is depressed it projects 3-1/16". Supplied with 299 strike in dull black.

  • In Stock!
  • Order in the next 8 hours 13 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $851.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$11.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $12.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$12.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum
313 Dark Bronze + $40.00 313 Dark Bronze +$40.00
US26D (626) Satin Chrome + $93.00 US26D (626) Satin Chrome +$93.00

Choose Fire Rated:

UL Fire Rated Exit Device +$137.00
Non Fire Rated

Help Me Decide

UL listed for fire exit hardware.

Choose EL (Electric Latch Retraction):

Need Help Deciding?
3FT EL- Electric Latch Retraction (050070) +$633.00
4FT EL- Electric Latch Retraction (050078) +$633.00
No EL (Electric Latch Retraction)

Help Me Decide

  • The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
  • EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
  • The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Overview

99NL Exit devices include 990NL trim.

Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for both fire exit hardware & exit hardware as applicable
  • 3 year Limited warranty
Special Orders Available:
  • More unlisted finishes available
  • RX, LX or SS switches available
Contact us directly to place your special orders.



Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
  • Finish:

  • Fire Rated: info icon

    • UL Fire Rated Exit Device
    • Non Fire Rated
  • EL (Electric Latch Retraction): info icon

    • 3FT EL- Electric Latch Retraction (050070)
    • 4FT EL- Electric Latch Retraction (050078)
    • No EL (Electric Latch Retraction)

Product at A Glance

  • For all types of single and double doors with mullion
  • Quiet operation
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors
Style Rim exit device
Grade Heavy duty
Trim Night latch Pull trim,
Key retracts latchbolt, door remains locked
Handing Non-handed
Dogging Feature Hex key dogging standard on non fire rated devices
Center Case Dimensions 8" X 2-3/4" X 2-3/8"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
