Yale AU-NTB622-NR-626-1-34"-1803-5L-380N-497

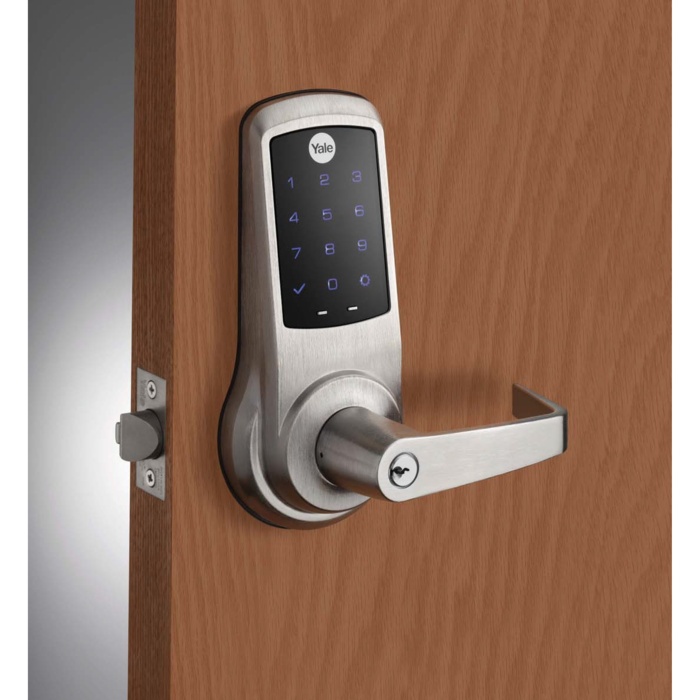

nexTouch Cylindrical Access Control Lock with Keypad

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: AU-NTB622-NR-626-1-34"-1803-5L-380N-497

Touchscreen responds to human touch, enabling convenient entrance or access to programming menu. Keyless entry and management.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


Special order item with 6 week lead time
  • Lock w/Capacitive Touchscreen - cylinder override.
  • Powered by 4 AA alkaline batteries.
  • PIN code access-Installations are able to be programed with up to 500 unique PIN codes and a master codes for access to programming.
  • Key override,unlocks the outside lever only.
  • Touchscreen responds to human touch, enabling convenient entrance or access to programming menu.
  • Voice-guided programming in 3 languages. Voice-guided prompts make updates straightforward and effortless in English, Spanish or French.
  • Three (3) volume modes. Playback can be set for normal, low or silent.
  • Privacy feature-By holding the interior lock button down for 1.5 seconds, the exterior keypad is temporarily disabled ensuring complete privacy and no additional entry.
  • Weather resistant gasket-Lock is operational even in outdoor settings, in temperatures ranging from -40°F to 140°F at 95% relative humidity.
  • Augusta style lever.
  • 626-satin chrome finish.

Product at A Glance

  • Low battery indicator- Blinking designation signals internal 4 AA alkaline batteries are low.
  • Optional passage mode-PIN codes can be used to enable passage mode, allowing for continuous entry for non-restricted traffic.
  • Keypad lockout feature-Deters tampering by disabling the keypad for a default of 180 seconds after five successive failed attempts.
  • Lever design meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ICC/ANSI A117.1
  • nexTouch cylindrical certified ANSI/BHMA A156.2, Series 4000 Grade 1.
  • Functions are UL/cUL Fire Listed for use on fire doors having a rating up to and including 3 hours.

More Info

  • Latchbolt retracted by lever outside with valid PIN code; by use of mechanical key, or by operating lever inside.
  • Inside lever always active.
  • Deadlocking latchbolt.
