Best 7KC37D16DS3-606

Special Order Standard Duty Interchangeable Core Storeroom Lever

Quick Product Details

  • Interchangeable Core Lever
  • Standard Duty
  • Storeroom function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7KC37D16DS3-606

Choose Options Below

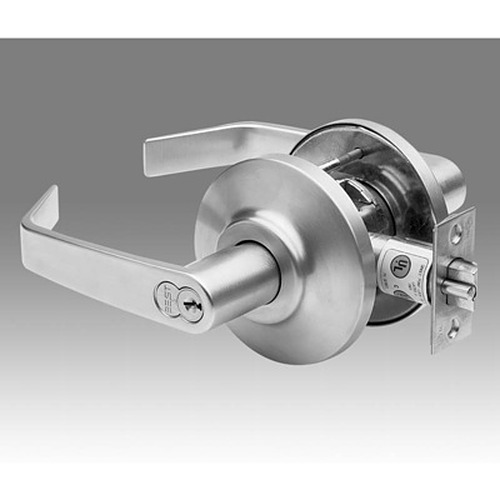

This Best 7KC37D16DS3 is a Grade 2 ANSI A156.3 compliant, standard duty, UL listed cylindrical lever. This lock accepts Best 7 pin interchangeable cores (not included). The inside rose is snap on with no exposed screws.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core with 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed +$32.00
100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core + $34.00 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core +$34.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Choose Finish:

606 Satin Brass 606 Satin Brass

Overview

Special order non stock item with 4 week lead time

  • 606-Satin brass finish.
  • #16 Curved no return lever style.
  • .ADA compliant.
  • UL Listed for 3-hour A label single swinging (4' x 8' )fire doors.
  • Listed ANSI A156.3, Grade 2.

Available Options: Choose Options Above

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core with "A" keyway-ready to be keyed
    • 100CR/Contrl Ky-Keyed Arrow 6 Pin Small Format (Best type) Interchangeable Core
    • No IC Core Needed
  • Finish:

Product at A Glance

  • Accepts Best 7-pin interchangeable cores, core is not included.
  • Inside rose is snap-on with no exposed mounting screws.
  • Through-bolt mounting studs increase torque resistance.
Style Interchangeable Core Lever
Grade Standard duty
Function - Outside lever is always locked
- Key in the outside lever retracts the latch, lever remains locked
- Inside lever is always free
Backset 2-3/4"
Handing Non-handed
Rose "D" style with 3-1/2" diameter
Door Thickness 1-3/8" to 2"
Latch - 1/2" throw deadlocking latch
- front: 2-1/4" x 1-1/8"
Strike S3 ANSI strike 4-7/8" x 1-1/4" with curved lip and box (ANSI A115.2 for 1-3/4" doors)

More Info


All Best Access Systems products are known for their high quality and efficient operation. This 7KC series lever lock is a superb product which fits the standards Best Access Systems has created for themselves. In addition, this lock is designed to work with interchangeable cores which makes it an even better option for all your commercial needs.
