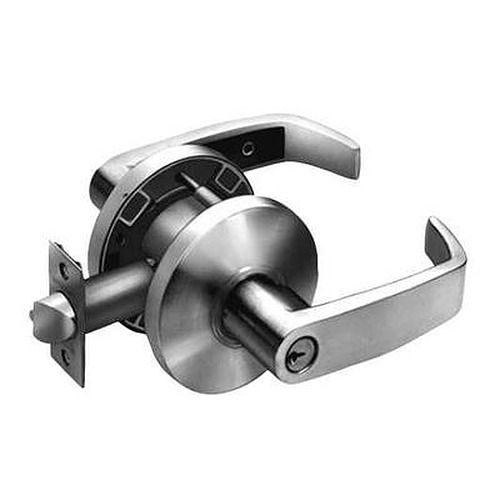

Sargent 28-65G04-KL

Standard Duty Storeroom lever

Price: $223.00 /each

SKU: 28-65G04-KL

Choose Options Below

The Sargent 6500 line 65G04 storeroom function is a medium duty key-in-lever lock ideally suited for light to medium commercial offices, apartments, hotels / motels. Storeroom function-outside lever always locked. Key in outside lever retracts latch, door remains locked. Inside lever always unlocked.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $223.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Backset:

2-3/4 2-3/4"

Help Me Decide

The backset is the measured distance from the edge of a door to the center of the 2-1/8” bore hole.

Choose Finish:

Satin Chrome (US26D) Satin Chrome (US26D)

Choose Cylinder:

LA-KD 6 Pin Cylinder Keyed Different LA-KD 6 Pin Cylinder Keyed Different
No Cylinder Needed (LC) Subtract -($64.90)

Help Me Decide

Cylinder - Sargent 6 pin LA cylinder keyed different.

Overview

  • Storeroom function
  • Standard duty key-in-lever lock
  • For doors 1-3/8" to 1-3/4" only
  • Cylinder - Sargent 6 pin LA cylinder keyed different or less cylinder.
  • All levers conform to ADA requirement for barrier-free accessibility
  • Backset - 2-3/4" standard, 2-3/8" optional. The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4"curved lip
  • Latch - Brass 1/2" throw
  • K style rose with L style lever

Available Options: Choose Options Above

  • Backset: info icon

    • 2-3/4"
  • Finish:

  • Cylinder: info icon

    • LA-KD 6 Pin Cylinder Keyed Different
    • No Cylinder Needed (LC)

More Info

  • 04 Closet or Storeroom
  • Deadlocking latch
  • Outside lever always locked.
  • Key in outside lever retracts latch, door remains locked.
  • Inside lever always unlocked.
  • ANSI F86
  • Minimum Stile 4-1/2"
  • ANSI/BHMA - Meets ANSI A156.2 Series 4000 Grade 2
  • UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors
  • Positive Pressure Meets UL 10C and UBC 7-2 (1997)
  • ADA - All levers conform to ADA requirement for barrier-free accessibility
    Available in other finishes and lever styles and 2-3/8" backset as a special order. Contact us directly to arrange your special order.
