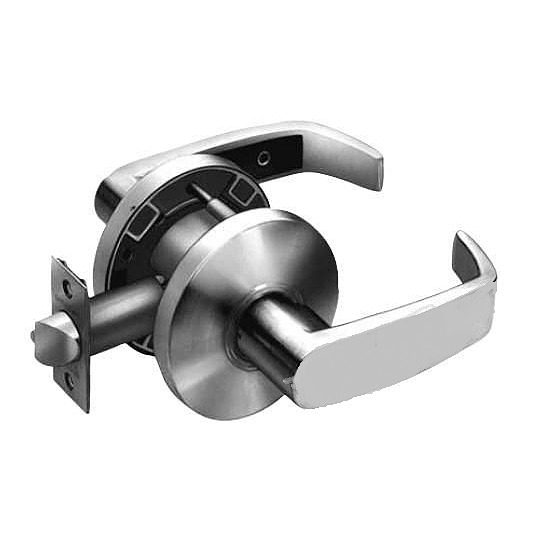

Sargent 28-65U15-KL

Standard Duty Passage lever

Price: $155.00 /each

SKU: 28-65U15-KL

Choose Options Below

The Sargent 6500 line 65U15 passage function is a medium duty lever ideally suited for light to medium commercial offices, apartments, hotels / motels. Passage function-passage function, both levers always unlocked.

  • Stock Item
  • Order in the next 33 hours 47 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $155.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose Backset:

2-3/4 2-3/4"

Help Me Decide

The backset is the measured distance from the edge of a door to the center of the 2-1/8” bore hole.


  • Passage function.
  • Standard duty commercial lever lock.
  • For doors 1-3/8" to 1-3/4" only.
  • Backset - 2-3/4" standard 2-3/8" optional. The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip.
  • Latch - Brass 1/2" throw.
  • K style rose with L style lever.

Available Options: Choose Options Above

  • Finish:

  • Backset: info icon

    • 2-3/4"

More Info

  • Minimum Stile 4-1/2".
  • Passage function, both levers always unlocked.
  • ANSI/BHMA - Meets ANSI A156.2 Series 4000 Grade 2.
  • UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors.
  • Positive Pressure - Meets UL 10C and UBC 7-2 (1997).
  • ADA - All levers conform to ADA requirement for barrier-free accessibility.
Available in other finishes and lever styles as a special order. Contact us directly to arrange your special order.
