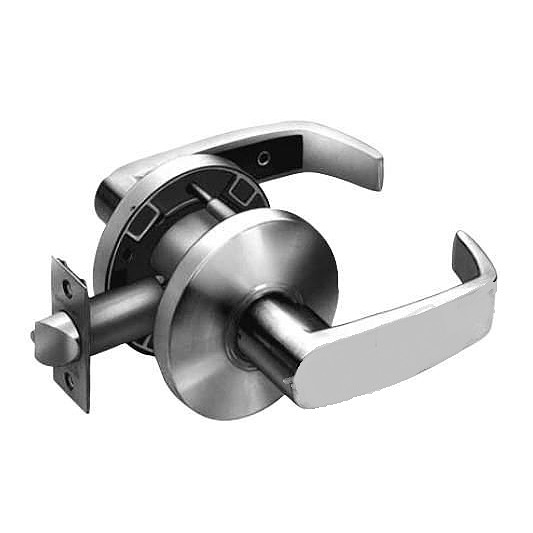

Sargent 28-65U65-KL

Standard Duty Privacy/Bathroom lever

Price: $175.00 /each

SKU: 28-65U65-KL

Choose Options Below

The Sargent 6500 line 65U65 privacy function is a medium duty lock ideally suited for light to medium commercial offices, apartments, hotels / motels. Privacy function-outside lever is locked by push button in inside lever. Turning inside lever or closing door releases button.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $175.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Backset:

2-3/4 2-3/4"

Help Me Decide

The backset is the measured distance from the edge of a door to the center of the 2-1/8” bore hole.

Choose Finish:

US10B Oiled Rubbed Bronze US10B Oiled Rubbed Bronze
US26D Satin Chrome US26D Satin Chrome


  • Privacy/Bathroom function
  • Standard duty commercial lever lock
  • For doors 1-3/4" thick.
  • Backset - 2-3/4" standard  The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip
  • Latch - Brass 1/2" throw
  • K style rose with L style lever

Available Options: Choose Options Above

More Info

  • 65 Privacy/Bathroom.
  • Outside lever is locked by push button in inside lever.
  • Turning inside lever or closing door releases button.
  • Emergency button in outside lever unlocks, with use of a blade screwdriver outside lever and releases inside button.
  • ANSI F76.
  • Minimum Stile 4-1/2".
  • ANSI/BHMA - meets ANSI A156.2 Series 4000 Grade 2.
  • UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors.
  • Positive Pressure - Meets UL 10C and UBC 7-2 (1997).
  • ADA - All levers conform to ADA requirement for barrier-free accessibility.
Available in other finishes and lever styles as a special order. Contact us directly to arrange your special order.
