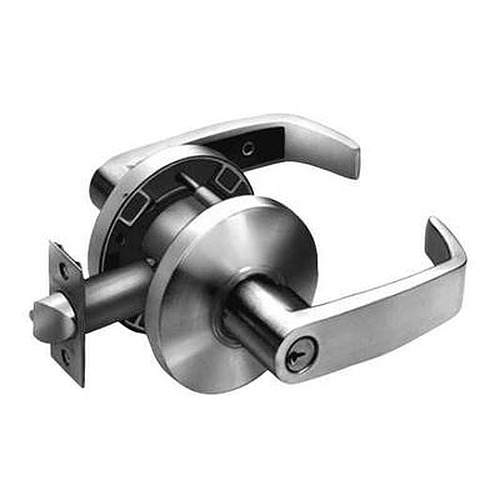

Sargent 28-65G05-KL

Standard Duty Entrance or Office lever

Price: $223.00 /each

SKU: 28-65G05-KL

Choose Options Below

The Sargent 6500 line 65G05 entrance function is a medium duty key-in-lever lock ideally suited for light to medium commercial offices, apartments, hotels / motels. Entrance function-outside lever is locked by push/turn button in inside lever. Push button released by key outside or lever inside. Turn button must be released manually.

  • Stock Item
  • Order in the next 32 hours 44 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $223.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Backset:

2-3/4 2-3/4"

Help Me Decide

The backset is the measured distance from the edge of a door to the center of the 2-1/8” bore hole.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose Cylinder:

LA-KD 6 Pin Cylinder Keyed Different LA-KD 6 Pin Cylinder Keyed Different
No Cylinder Needed (LC) Subtract -($64.90)

Help Me Decide

Cylinder - Sargent 6 pin LA cylinder keyed different.

Overview

  • Entrance or Office function.
  • Standard duty key-in-lever lock.
  • Cylinder - Sargent 6 pin LA cylinder keyed different or less cylinder.
  • All levers conform to ADA requirement for barrier-free accessibility.
  • For doors 1-3/8" to 1-3/4" only.
  • Backset - 2-3/4" standard, 2-3/8" optional. The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip.
  • Latch - Brass 1/2" throw.
  • K style rose with L style lever.

Available Options: Choose Options Above

  • Backset: info icon

    • 2-3/4"
  • Finish:

  • Cylinder: info icon

    • LA-KD 6 Pin Cylinder Keyed Different
    • No Cylinder Needed (LC)

More Info

  • 05 Entrance or Office
  • Deadlocking latch.
  • Outside lever is locked by push/turn button in inside lever.
  • Push button released by key outside or lever inside.
  • Turn button must be released manually.
  • Key retracts latch when outside lever is locked.
  • ANSI F81.
  • Minimum Stile 4-1/2".
  • ANSI/BHMA - Meets ANSI A156.2 Series 4000 Grade 2.
  • UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors.
