Schlage L9050LB-US10B

Special Order Entrance/Office Mortise Lock Body with Armor Front

Quick Product Details

  • Mortise Lock Body
  • Heavy Duty
  • Entrance/Office Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L9050LB-US10B

Choose Options Below

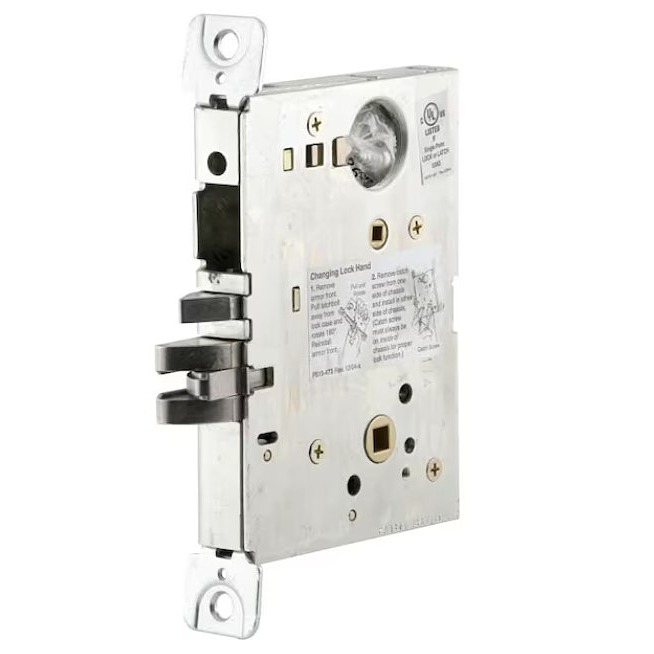

This Schlage L9050LB is a sturdy mortise lock body suited for applications in commercial , extra-heavy duty locations. Designed to fit 1-3/4" thick doors with a standard backset of 2-3/4". Armored front and strike are available wherever necessary. Supplied in US10B with matching armor front.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $316.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Armored Front:

No Armor Front Needed
Armor Front- Oil Rubbed Bronze (09- 663-613) Armor Front- Oil Rubbed Bronze (09- 663-613)

Help Me Decide

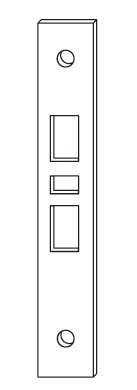

  • Armor Front for L9050/L9070/L9080.
  • Satin chrome finish-626.
  • 1/4” x 8” x 7/32”.
  • Mounting screws are included with armor fronts.

Choose Strike:

No Strike Needed
Standard Strike for L9000 Series -Satin Chrome Finish (10-072) + $22.00 Standard Strike for L9000 Series -Satin Chrome Finish (10-072) +$22.00

Help Me Decide

Standard square corner strike for Schlage L9000 series mortise locks

1-1/4” x 4-7/8” x 13/16” Lip.

Satin chrome finish-626





Overview

Non-Stock Special Order with 4-6 week lead time.

Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets ANSI/BHMA A156.13 series 1000 Grade 1 operational security requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 3 year limited warranty

Available Options: Choose Options Above

  • Armored Front: info icon

    • No Armor Front Needed
    • Armor Front- Oil Rubbed Bronze (09- 663-613)
  • Strike: info icon

    • No Strike Needed
    • Standard Strike for L9000 Series -Satin Chrome Finish (10-072)

Product at A Glance

  • Lock bodies are furnished with mounting screws and templates only.
  • Armor front in matching finish included with purchase.
  • Lock trim, strike and cylinders must be ordered separately.
Style Mortise lock body
Grade Heavy duty
Function Entrance or Office Function:
-Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn
- When locked, key outside or lever inside retracts latchbolt
-Outside lever remains locked until thumbturn is returned to vertical or unlocked by key
- Inside lever is always free
- ANSI F04
Handing Shipped right handed but easily reversible without disassembly
Backset 2-3/4" (standard)
Latch Stainless steel latch with anti-friction tongue
Throw 3/4"
Door Thickness 1-3/4"
Lock Body Size 4-7/16" X 6-1/16" X 1"
Armored Front 1-1/4" X 8" X 7/32"
Strike ANSI curved lip strike 1-1/4" X 4-7/8" X 1-3/16" lip, to center with dustbox standard
