Schlage L9092EU-RX-17A-626

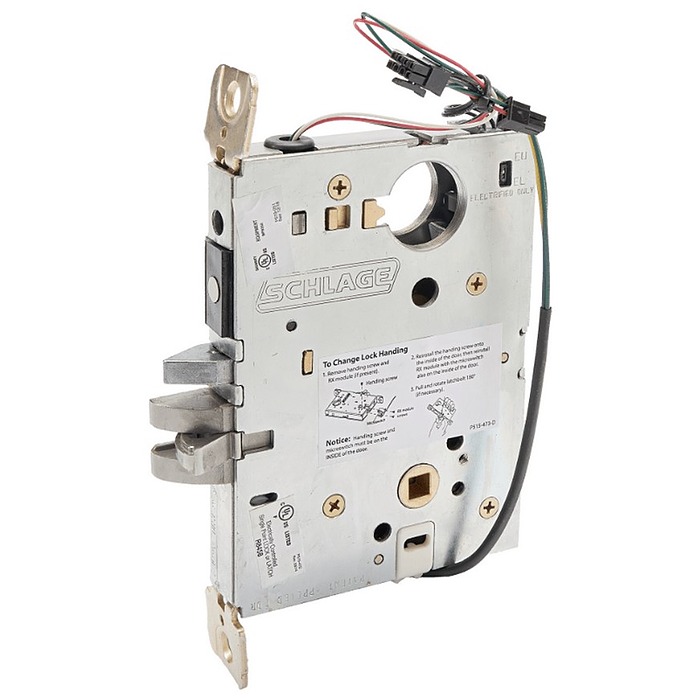

Special Order Complete Electrified Fail Secure Mortise Lock with Request to Exit

Quick Product Details

  • Automatic detection and operation with 12 or 24V DC
  • Case-mounted switch that allows customer selection of EL or EU

or for better pricing

Price: $1,339.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: L9092EU-RX-17A-626

Schlage L9092 Electrified mortise lock.. Electrically locking/unlocking outside lever with 17A lever/rose and RX Request to Exit switch. 626 finish, furnished with standard ANSI strike, 10-072

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 6-8 week lead time
  • Handing is field reversible.
  • Outside lever continuously locked (EU) or unlocked (EL).No cylinder.
  •  Electrified chassis for L9090/92/94 functions.
  • User selectable fail safe/fail secure. Shipped EU fail secure, power failure locks outside lever. EL is fail safe,  power failure allows outside lever to retract latchbolt.
  • Changing mode between EL and EU is as simple as flipping a switch on the lock case.
  • With 17 style lever and A Rose.
  • Advanced motor-driven electrified functions – quieter, smoother, more secure operation.
  • Universal input voltage Auto-detect 12/24 VDC.
  • Latchbolt retracted by key outside or lever inside.
  • Inside lever always free for immediate exit.
  • 0.4 amp max current draw allows more locks per power supply.
  • Low 0.01 amp holding current eliminates “hot levers.

More Info

  • For doors 1-3⁄4" thick standard.
  • Backset 2-3⁄4" only.
  • L9000 case size 4-7/16” x 6-1/16” x 1”.
  • All installations should be in accordance with local electrical codes and National Electrical Code, NFPA 70.
