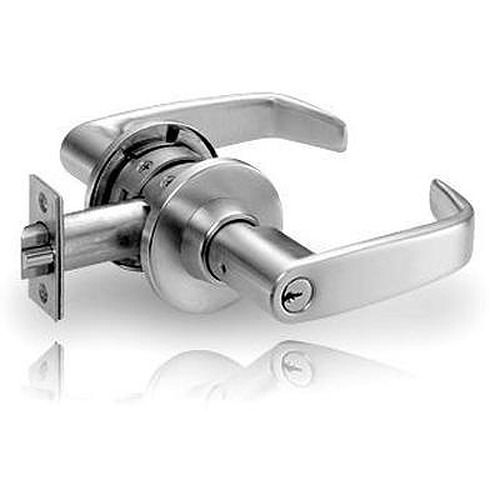

Sargent 11G04

Special Order T-Zone Extra Heavy Duty Storeroom lever

Quick Product Details

  • Lever Set
  • Extra Heavy Duty
  • Storeroom or Closet Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 11G04

Choose Options Below

This Sargent 11G04 is a T-Zone constructed lever lock which provides extreme strength and endurance for use in very demanding applications. T-Zone construction ensures actual interlocking between the lock body and the latch to bring the desired results. This model is for storeroom function applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose Lever:

L L
B B

Choose Cylinder:

LA-KD 6 Pin Cylinder Keyed Different LA-KD 6 Pin Cylinder Keyed Different
60-Prepped for Removable Core (RC). Core not included 60-Prepped for Removable Core (RC). Core not included
No Cylinder Needed (LC) Subtract -($60.50)

Help Me Decide

Sargent  6 pin LA keyway keyed different

Standard Sargent cylinder



60-prepped for Sargent brand removable core(core not included)

Large Format Removable Core Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks. Easily rekeyed without disassembling entire lock

No cylinder

Cylinder not included

Overview


Suited for:
  • Commercial extra heavy duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL listed to U.S.A. and to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Heavy duty T-Zone construction; interlocking latch
  • Deadlocking latch to prevent lock picking by credit card
  • Resists vandalism

Door preparation: (161 standard)
Convenience:
  • Includes fewer part to make for easier installation
  • Lever  needs to be rotated only 45 degrees in order to retract the latchbolt
  • Easy cylinder removal

Available Options: Choose Options Above

  • Finish:

  • Lever:

    • L
    • B
  • Cylinder: info icon

    • LA-KD 6 Pin Cylinder Keyed Different
    • 60-Prepped for Removable Core (RC). Core not included
    • No Cylinder Needed (LC)

Product at A Glance

Style Key-in-lever lock
Grade Extra heavy duty
Function Storeroom or Closet Function:
- Always locked on outside knob
- Requires a key for entry
- Inside knob is always free
- ANSI F86
Handing Non-handed
Backset 2-3/4"
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (stainless steel)
Throw 1/2"
Door Thickness 1-3/4" adjustable to 2"
Design - Rose - L style
- Lever - select above

More Info


The T-Zone construction by far surpasses the strength and durability of any other lock. Independent cycle testing proves that this lock exceeds ANSI/BHMA A156.2 Grade 1 standards for more than  ten-million cycles! These locks are also designed to be able to endure 3-1/2 times ANSI/BHMA A156.2 Grade 1 torque force on a locked lever. It can withstand over  3000 inches/pounds.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

SARGENT 11 line T-Zone lock Installation thumbnail

SARGENT 11 line T-Zone lock Installation
