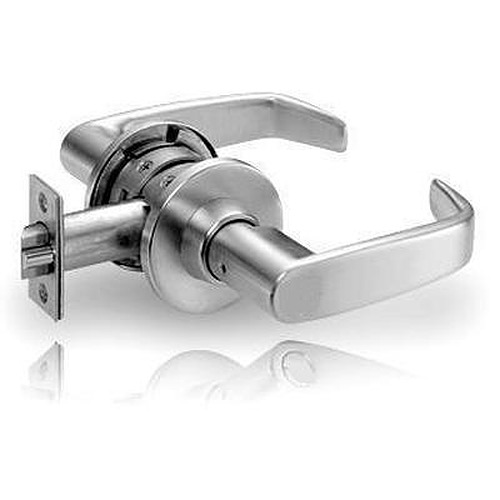

Sargent 11U65

Special Order T-Zone Extra Heavy Duty Privacy lever

Quick Product Details

  • Lever Set
  • Extra Heavy Duty
  • Privacy/Bathroom Function
Price: $437.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 11U65

Choose Options Below

This Sargent 11U65, is a great lock for privacy applications in facilities where extra-heavy duty construction is necessary such as schools and hospitals. 11 line locks far exceed ANSI/BHMA standards for bored locks and meet the ADA requirements for barrier free accessibility.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $437.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose Lever:

L L
B B

Overview


Suited for:
  • Commercial extra heavy duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL and cUL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Heavy duty T-Zone construction; interlocking latch

Door Preparation: (161 standard)
Convenience:
  • Includes fewer part to make for easier installation
  • Lever  needs to be rotated only 45 degrees in order to retract the latchbolt

Available Options: Choose Options Above

Product at A Glance

Style Lever set
Grade Extra Heavy Duty
Function Privacy/Bathroom Function:
- Push button on inside knob locks outside knob and is released when door is closed or inside knob is turned
- Emergency release on outside knob
- ANSI F76
Handing Non-handed
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (stainless steel)
Throw 1/2"
Door Thickness 1-3/4" adjustable to 2"
Backset 2-3/4" (Standard)
Design - Rose - L style
- Lever - select above

More Info


Tired of constantly repairing and replacing your door levers? Fed up with malfunctioning and sagging locks? The Sargent T-Zone series lock is your solution! This lock has been cycle tested and proven to exceed ANSI/BHMA standards for ten million cycles! The T-Zone construction ensures true interlocking between the lock body and the latch.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

SARGENT 11 line T-Zone lock Installation thumbnail

SARGENT 11 line T-Zone lock Installation
