Sargent Special Order T-Zone Extra Heavy Duty Classroom Security Lever Special Orders

Sargent 11G38

Special Order T-Zone Extra Heavy Duty Classroom Security Lever

Quick Product Details

Lever Set
Extra Heavy Duty
Classroom Security Function

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: 11G38

Choose Options Below

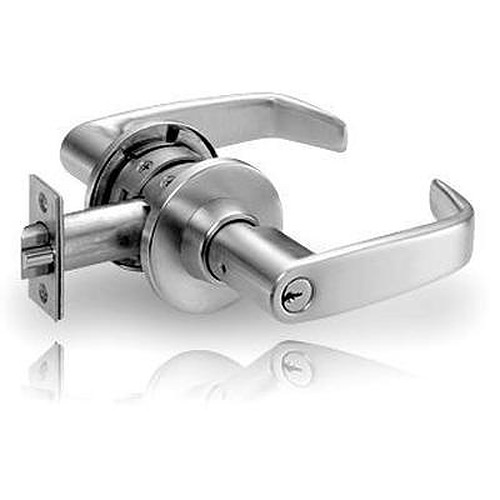

This Sargent 11G38 is a T-Zone, 11 Line extra heavy duty lock. It is designed as a classroom security lock in which the lock can be locked or unlocked with a key in the outside or inside lever. However, when it is locked with a key in the inside lever, the key in the outside lever will retract the latchbolt but will not unlock the trim.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626

Choose Cylinder:

LA-KD 6 Pin Cylinder Keyed Different

60-Prepped for Removable Core (RC). Core not included

No Cylinder Needed (LC) Subtract -($60.50)

Help Me Decide

Sargent 6 pin LA keyway keyed different	Standard Sargent cylinder
60-prepped for Sargent brand removable core(core not included)	Large Format Removable Core	Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks. Easily rekeyed without disassembling entire lock
No cylinder	Cylinder not included

Choose Lever:

1 Choose Finish:
2 Choose Cylinder:
3 Choose Lever:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Suited for:

Commercial extra heavy duty applications

Quality and Safety:

Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
UL and cUL listed to Canadian safety regulations; listed for use on 3-hour doors
Positive Pressure - meets UL 10C and UBC 7-2
Meets ADA requirements for barrier free accessibility
10 year limited warranty
Heavy duty T-Zone construction; interlocking latch
Deadlocking latch to prevent lockpicking by credit card
Resists vandalism

Door Preparation: (161 standard)

Cross-bore hole - 2-1/8”
Backset - 2-3/4”
1” edge bore hole
Mortise - width 1-1/8”, height 2-1/4”

Convenience:

Includes fewer part to make for easier installation
Lever needs to be rotated only 45 degrees in order to retract the latchbolt
Easy cylinder removal

Available Options: Choose Options Above

Finish:
- Satin Chrome - 626

Cylinder:

LA-KD 6 Pin Cylinder Keyed Different
60-Prepped for Removable Core (RC). Core not included
No Cylinder Needed (LC)

Lever:
- L
- B

Product at A Glance

Style	Key-in-lever lock
Grade	Commercial extra heavy duty
Function	Classroom Security Function: - Key in the inside or outside lever locks or unlocks the trim - When locked by key in the inside lever, key in the outside lever retracts latch but does not release the trim - Inside lever is always free - Locking direction is engraved on the inside rose. - ANSI F110
Handing	Non-handed
Strike	4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch	2-1/4" x 1-1/8" (stainless steel)
Throw	1/2"
Door Thickness	1-3/4" adjustable to 2"
Backset	2-3/4" (Standard)
Design	- Rose - L style - Lever - select above

More Info

Worried about the security of your school? Concerned about the safety of your students? Well, no need to fear anymore! We have the perfect solution for all your classroom needs. The Sargent 11G38 is of the highest quality and constructed to meet demanding durability standards. For extra protection, when the set is locked by key on the inside lever, a key in the outside lever will retract the but will not unlock the .
