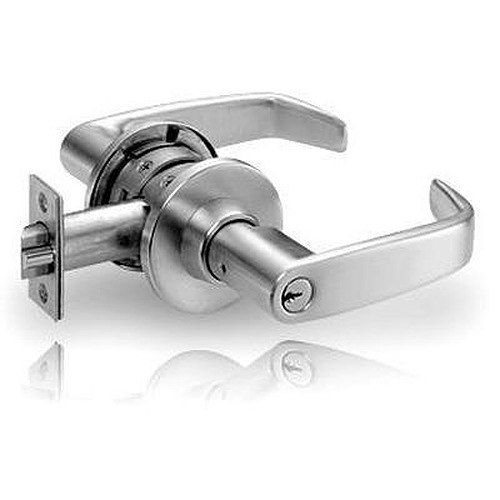

Sargent 11G37

T-Zone Extra Heavy Duty Classroom lever

Quick Product Details

  • Lever Set
  • Extra Heavy Duty
  • Classroom Function
SKU: 11G37

Price: $329.00 /each

Choose Options Below

This Sargent 11G37 is a T-Zone constructed, extra-heavy duty, classroom function lever lock, which is designed to bring you the highest standards of quality and safety. It by far exceeds ANSI/BHMA standards, is UL and cUL listed to Canadian regulations, meets ADA requirements for barrier free accessibility, has a deadlocking latch and features that resist vandalism and is warranteed by Sargent for 10 years.

  • In Stock!
  • Order in the next 20 hours 14 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $329.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Cylinder:

Need Help Deciding?

Help Me Decide

Sargent  6 pin LA keyway keyed different

Standard Sargent cylinder



60-prepped for Sargent brand removable core(core not included)

Large Format Removable Core Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks. Easily rekeyed without disassembling entire lock

No cylinder

Cylinder not included

Choose Lever:

Overview


Suited for:
  • Commercial extra heavy duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL and cUL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Heavy duty T-Zone construction; interlocking latch
  • Deadlocking latch to prevent lock picking by credit card
  • Resists vandalism

Door preparation: (161 standard)
Convenience:
  • Includes fewer part to make for easier installation
  • Lever  needs to be rotated only 45 degrees in order to retract the latchbolt
  • Easy cylinder removal

Available Options: Choose Options Above

  • Finish:

  • Cylinder: info icon

    • LA-KD 6 Pin Cylinder Keyed Different
    • 60-Prepped for Removable Core (RC). Core not included
    • No Cylinder Needed (LC)
  • Lever:

    • L
    • B

Product at A Glance

Style Key-in-lever lock
Grade Extra heavy duty
Function Classroom Function:
- Lockable by key on the outside knob
- Inside knob is always free
- ANSI-F84
Handing Non-handed
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (stainless steel)
Throw 1/2"
Door Thickness 1-3/4" adjustable to 2"
Backset 2-3/4" (Standard)
Design - Rose - L style
- Lever - select above

Since every application  requires different specifications, we provide various option for you to choose from to suit the needs of your door. This specific lock is supplied with the satin chrome finish, it is available with the L or B levers and with a variety of different cylinders to provide you with the proper locking qualifications necessary for your facility.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

T-Zone Extra Heavy Duty Classroom lever

SARGENT 11 line T-Zone lock Installation thumbnail

SARGENT 11 line T-Zone lock Installation
