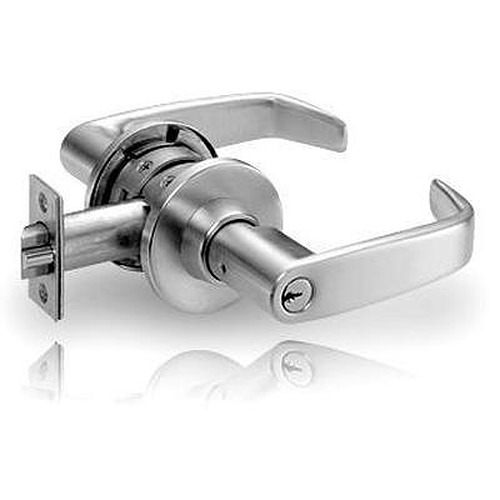

Sargent 11G05

Special Order T-Zone Extra Heavy Duty Entrance or Office lever

Quick Product Details

  • Lever Set
  • Extra Heavy Duty
  • Entrance/Office Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 11G05

Choose Options Below

This Sargent 11G05 is an extra heavy duty lever lock for entrance or office function doors. It is constructed with Sargent's T-Zone specifications to make for a strong and durable lock that can withstand conditions even in the most demanding applications. Greatly exceeds ANSI/BHMA 156.2 4000 Grade 1 Standards for durability.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose Cylinder:

LA-KD 6 Pin Cylinder Keyed Different LA-KD 6 Pin Cylinder Keyed Different
60-Prepped for Removable Core (RC). Core not included 60-Prepped for Removable Core (RC). Core not included
No Cylinder Needed (LC) Subtract -($60.50)

Help Me Decide

Sargent  6 pin LA keyway keyed different

Standard Sargent cylinder



60-prepped for Sargent brand removable core(core not included)

Large Format Removable Core Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks. Easily rekeyed without disassembling entire lock

No cylinder

Cylinder not included

Choose Lever:

L L
B B

Overview


Suited for:
  • Commercial extra heavy duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 1 durability standards
  • UL and cUL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Heavy duty T-Zone construction; interlocking latch
  • Deadlocking latch to prevent lock picking by credit card
  • Resists vandalism

Door preparation: (161 standard)
  • Cross-bore hole-2-1/8”
  • Backset - 2-3/4”
  • 1” edge borehole
  • Mortise - width 1-1/8”, height 2-1/4”

Convenience:
  • Includes fewer part to make for easier installation
  • Lever  needs to be rotated only 45 degrees in order to retract the latchbolt
  • Easy cylinder removal

Available Options: Choose Options Above

  • Finish:

  • Cylinder: info icon

    • LA-KD 6 Pin Cylinder Keyed Different
    • 60-Prepped for Removable Core (RC). Core not included
    • No Cylinder Needed (LC)
  • Lever:

    • L
    • B

Product at A Glance

Style Key-in-lever lock
Grade Extra Heavy Duty
Function Entrance or Office Function:
- Key in the outside knob retracts the latch
- Button on inside knob can be pushed in and turned to lock the outside knob
- Inside knob is always free
- ANSI F81
Handing Non-handed
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8" (stainless steel)
Throw 1/2"
Door Thickness 1-3/4" adjustable to 2"
Backset 2-3/4" (Standard)
Design - Rose - L style
- Lever - select above

More Info


The 11G05 cylindrical lever is constructed with the T-Zone qualifications which ensure maximum quality and durability. This lock assembly includes fewer parts than usual to make for an easier installation. For easy entrance, the lever only needs to be rotated 45 degrees to retract the latchbolt. The cylinder can very easily be removed.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

SARGENT 11 line T-Zone lock Installation thumbnail

SARGENT 11 line T-Zone lock Installation
